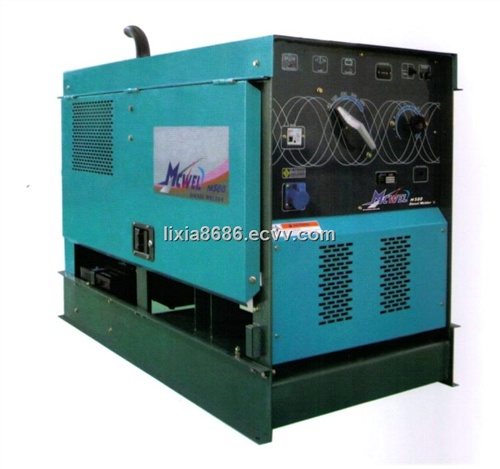

580 AMP Welding Generator

Detailed Product Description

Electric starter ensures easy starting
Separate welding range with fine adjustment in each range

Great welding performance

3-Cylinder air-cooled diesel engine

Auxiliary power while welding

550 Amperes output suitable for 2.6 to 8.0mm Air Carbon Arc Gouging and Stud Welding

Easy operation, handling, convenient and safe

SPECIFICATIONS
SET MODEL McWEL - M 580 DIESEL WELDER GENERATOR
DC WELDER Type DC output Type ENGINE Model Deutz F3L912
Rated output KW 24 Type Air-cooled industrial diesel engine
Rated current A 550 Rated output KW 29
Rated voltage V 20 ~ 45 Rated speed rpm 1850
Current range A 45 ~ 550 Cooling system Air-cooling environmental conditions
Open-circuit voltage V 95 Driving system Direct coupling
Rated duty cycle % 60 Fuel oil Light diesel oil
Revolution rpm 1850 Lubricating system Gear pump
Applicable Electrode mm 2.6 ~ 8.0 Starting system Electric motor
AUX. POWWE Type AC Battery capacity V-AH 12V - 42AH
Rated output KW 3 (1-phase version) Fuel tank capacity l 87
Rated voltage V 230 L mm 1620
Frequency Hz 60 Dimensions W mm 830
Rated speed rpm 1850 H mm 1040
Rating Continuous Net weight (dry, approx.) Kg 860

We also can supply it as Trailer type.
