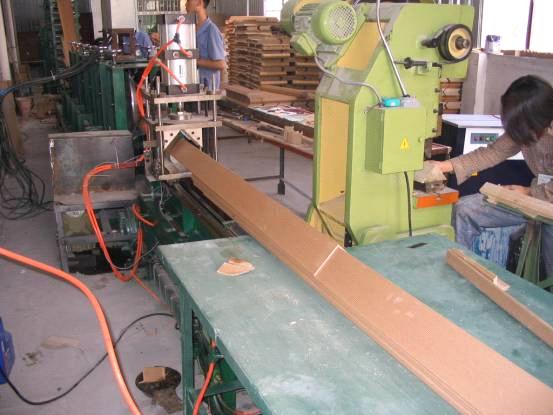

edge protector machine

Description:



It is used for producing the Angle Paper Protector (corner protector) which is used in packing industry. This machine integrates with inputting paper, glue pasting, molding and forming setting up the one-stop service. The product of angle protector has a good quality: fine hardness; accurate width, length and thickness; high rate of qualified products. So the operation is very easy.



Specification:



A.      Edge type: 25*25mm---150*150mm;

B.      Edge layer:    ≤18layers;

C.     Edge Thickness: 3mm—10mm;

D.     Working Speed:  0-15m/min;

E.      Power Supply:  7.5KW;

F.      Control System: Hydraulic System;

G.     Pressure Wheel: 5 sets of wheels;

H.      Dimension:  Length: 1620mm, Width: 105mm, High: 210mm;

I.        Total weight:  4.5MT
