Adapter Sleeve

Detailed Product Description

Linqing East China Bearing Co.,Ltd
Linqing East China Bearing Co.,Ltd

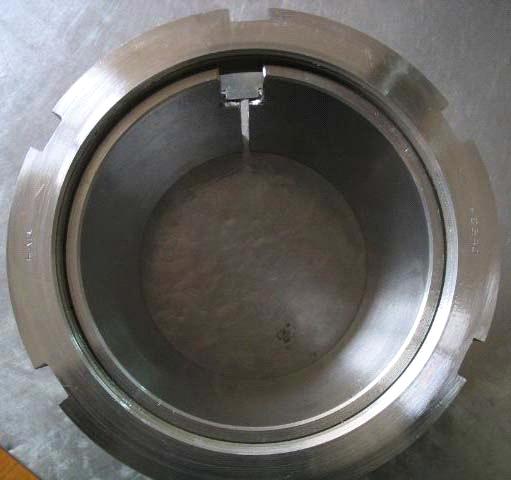

Adapter sleeve
Adapter sleeve
H2 Series
Item	Dimension(mm)				Equipped bearing model number	Weight(kg)
Item	d	d1	B1	d2	Self-aligning ball bearing	Weight(kg)
H204	20	17	24	32	1204K	0.045
H205	25	20	26	38	1025K	0.075
H206	30	25	27	45	1026K	0.109
H107	35	30	29	52	1027K	0.142
H208	40	35	31	58	1028K	0.189
H209	45	40	33	65	1029K	0.248
H210	50	45	35	70	1210K	0.303
H211	55	50	37	75	1211K	0.345
H212	60	55	38	80	1212K	0.394
H213	65	60	40	85	1213K	0.458
H214	70	60	41	92	1214K	0.723
H215	75	65	43	98	1215K	0.831
H216	80	70	46	105	1216K	1.03
H217	85	75	50	110	1217K	1.18
H218	90	80	52	120	1218K	1.37
H229	95	85	55	125	1219K	1.56
H220	100	90	58	130	1220K	1.69
H221	105	95	60	140	1221K
H222	110	100	63	145	1222K	2.18
H3 Series
Item	Dimension(mm)				Equipped bearing model number		Weight(kg)
Item	d	d1	B1	d2	Self-aligning ball bearing	Spherical roller bearing	Weight(kg)
H304	20	17	28	32	1304K 2204K	21304K	0.045
H305	25	20	29	38	1305K 2205K	21305K	0.075
H306	30	25	31	45	1306K 2206K	21306K	0.109
H107	35	30	35	52	1307K 2207K	21307K	0.142
H308	40	35	36	58	1308K 2208K	21308K 22208K	0.189
H309	45	40	39	65	1309K 2209K	21309K 22209K	0.248
H310	50	45	42	70	1310K 2210K	21310K 22210K	0.303
H311	55	50	45	75	1311K 2211K	21311K 22211K	0.345
H312	60	55	47	80	1312K 2212K	21312K 22212K	0.394
H313	65	60	50	85	1313K 2213K	21313K 22213K	0.458
H314	70	60	52	92	1314K 2214K	21314K 22214K	0.723
H315	75	65	55	98	1315K 2215K	21315K 22215K	0.831
H316	80	70	59	105	1316K 2216K	21316K 22216K	1.03
H317	85	75	63	110	1317K 2217K	21317K 22217K	1.18
H318	90	80	65	120	1318K 2218K	21318K 22218K	1.37
H329	95	85	68	125	1319K 2219K	21319K 22219K	1.56
H320	100	90	71	130	1320K 2220K	21320K 22220K	1.69
H321	105	95	74	140	1321K 2221K	21321K 22221K
H322	110	100	77	145	1322K 2222K	21322K 22222K	2.18
H23 Series
Type	Dimension(mm)				Equipped bearing model number		Weight
Type	d	d1	B1	d2	Self-aligning ball bearing	Spherical roller bearing	(kg)
H2304	20	17	31	32	2304k	—	0.049
H2305	25	20	35	38	2305k	—	0.087
H2306	30	25	38	45	2306k	—	0.126
H2307	35	30	43	52	2307k	—	0.165
H2308	40	35	46	58	2308k	22308K	0.224
H2309	45	40	50	65	2309k	22309K	0.28
H2310	50	45	55	70	2310k	22310K	0.362
H2311	55	50	59	75	2311k	22311K	0.42
H2312	60	55	62	80	2312k	22312K	0.481
H2313	65	60	65	85	2313k	22313K	0.557
H2314	70	60	68	92	2314k	22314K	0.897
H2315	75	65	73	98	2315k	22315K	1.05
H2316	80	70	78	105	2316k	22316K	1.28
H2317	85	75	82	110	2317k	22317K	1.45
H2318	90	80	86	120	2318k	22318K	1.69
H2319	95	85	68	125	2319k	22319K	1.92
H2320	100	90	97	130	2320k	22320K	2.15
H2322	110	100	105	145	2322k	22322K	2.74
H2324	120	110	112	155	—	22324K 22224K	3.19
H2326	130	115	121	165	—	22326K 22226K	4.16
H2328	140	125	131	180	—	22328K 22328K	5.55
H2330	150	135	139	195	—	22330K 22330K	6.63
H2332	160	140	147	210	—	22332K 22332K	9.14
H2334	170	150	154	220	—	22334K 22334K	10.2
H2336	180	160	161	230	—	22336K 22336K	11.3
H2338	190	170	169	240	—	22338K 22338K	12.6
H2340	200	180	176	250	—	22340K 22340K	13.9
H2344	220	200	186	280	—	22344K 22344K	16.7
H2348	240	220	199	300	—	22348K 22348K	19.7
H2352	260	240	211	300	—	22352K 22352K	24.2
H2356	280	260	224	350	—	22356K 22356K	27.8
H30 Series
Item	Dimension(mm)				Equipped bearing model number	Weight(kg)
Item	d	d1	B1	d2	Spherical roller	Weight(kg)
H3024	120	110	72	145	23024K	1.93
H3026	130	115	80	155	23026K	2.85
H3028	140	125	82	165	23028K	3.16
H3030	150	135	87	180	23030K	3.89
H3032	160	140	93	190	23032K	5.12
H3034	170	150	101	200	23034K	5.99
H3036	180	160	109	210	23036K	6.83
H3038	190	170	112	220	23038K	7.45
H3040	200	180	120	240	23040K	9.91
H3044	220	200	126	260	23044K	10.3
H3048	240	220	133	290	23048K	13.2
H3052	260	240	145	310	23052K	15.3
H3056	280	260	152	330	23056K	17.7
H3060	300	280	168	360	23060K	22.8
H3064	320	300	171	380	23064K	24.6
H3068	340	320	187	400	23068K	28.7
H3072	360	340	188	420	23072K	30.5
H3076	380	360	193	450	23076K	35.8
H3080	400	380	210	470	23080K	41.5
H3084	420	400	212	490	23084K	43.6
H3088	440	410	228	520	23088K	65.5
H3092	460	430	234	540	23092K	69.4
H3096	480	450	237	560	23096K	73.5
H30/500	500	470	247	580	230/500K	82
H30/530	530	500	265	630	230/530K
H30/560	560	530	282	650	230/560K
H30/600	600	560	289	700	230/600K
H31 Series
Item	Dimension(mm)				Equipped bearing model number		Weight(kg)
Item	d	d1	B1	d2	Spherical roller bearing		Weight(kg)
H3120	100	90	72	130	23120K		1.7
H3122	110	100	80	145	23122K	22222K	2.25
H3124	120	110	82	155	23124K	22224K	2.64
H3126	130	115	87	165	23126K	22226K	3.66
H3128	140	125	93	180	23128K	22228K	4.34
H3130	150	135	101	195	23130K	22230K	5.52
H3132	160	140	109	210	23132K	22232K	7.67
H3134	170	150	112	220	23134K	22234K	8.38
H3136	180	160	120	230	23136K	22236K	9.5
H3138	190	170	126	240	23138K	22238K	10.8
H3140	200	180	133	250	23140K	22240K	12.1
H3144	220	200	145	280	23144K	22244K	14.7
H3148	240	220	152	300	23148K	22248K	17.3
H3152	260	240	168	330	23150K	22252K	22
H3156	280	260	171	350	23156K	22256K	24.5
H3160	300	280	187	380	23160K	22260K	30.2
H3164	320	300	188	400	23164K	22264K	34.9
H3168	340	320	193	440	23168K		49.5
H3172	360	340	210	460	23172K		54.5
H3176	380	360	212	490	23176K		61.6
H3180	400	380	228	520	23180K		70.8
H3184	420	400	234	540	23184K		84.5
H3188	440	410	237	560	23188K		108
H3192	460	430	247	580	23192K		116
H3196	480	450	265	620	23196K
H31/500	500	470	282	630	231/500K	———
H31/530	530	500	289	670	231/530K	———
H32 Series
Type	Dimension(mm)				Equipped bearing model number	Weight(kg)
	Dimension(mm)				Equipped bearing model number
	d	d1	B1	d2	Spherical roller
H3260	300	280	240	380	23260K	34
H3264	320	300	258	400	23264K	39.4
H3268	340	320	288	440	23268K	54
H3272	360	340	299	460	23272K	60.2
H3276	380	360	310	490	23276K	69.6
H3280	400	380	328	520	23280K	81
H3284	420	400	352	540	23284K	94
H3288	440	410	361	560	23288K	118
H3292	460	430	382	580	23292K	132
H3296	480	450	397	620	23296K	150
H32/500	500	470	428	630	232/500K	166
H32/530	530	500	447	670	232/530K
H32/560	560	530	462	710	232/560K
H32/600	600	560	487	750	232/600K
H32/630	630	600	521	800	232/630K
H32/670	670	630	558	850	232/670K
H32/710	710	670	572	900	232/710K
H32/750	750	710	603	950	232/750K
H32/800	800	750	618	1000	232/800K
H32/850	850	800	651	1060	232/850K
H32/900	900	850	660	1120	232/900K
H32/950	950	900	675	1170	232/950K
H32/1000	1000	950	707	1240	232/1000K
Withdrawal Sleeve
Withdrawal Sleeve
AH2 Series
Type	Dimension				Equipped bearing model number	Weight (kg)
	Dimension				Equipped bearing model number
	d	d1	B3	G	Self-aligning ball bearing
	d	d1	B3	G	Self-aligning ball bearing
AH208	40	35	25	M45×1.5	1208k
AH209	45	40	26	M50×1.5	1209k
AH210	50	45	28	M55×2	1210k
AH211	55	50	29	M60×2	1211k
AH212	60	55	32	M65×2	1212k
AH213	65	60	32.5	M70×2	1213k
AH214	70	65	33.5	M75×2	1214k
AH215	75	70	34.5	M80×2	1215k
AH216	80	75	35.5	M90×2	1216k
AH217	85	80	38.5	M95×2	1217k
AH218	90	85	40	M100×2	1218k
AH219	95	90	43	M105×2	1219k
AH220	100	95	45	M110×2	1220k
AH222	110	105	50	M120×2	1222k
AH224	120	115	53	M130×2	──
AH226	130	125	53	M140×2	──
AH228	140	135	56	M150×2	──
AH230	150	145	60	M160×3	──
AH232	160	150	64	M170×3	──
AH234	170	160	69	M180×3	──
AH236	180	170	69	M190×3	──
AH238	190	180	73	M200×3	──
AH×240	200	190	77	Tr210×4	──
AH×244	220	200	85	Tr230×4	──
AH×248	240	220	96	Tr260×4	──
AH×252	260	240	105	Tr280×4	──
AH×256	280	260	105	Tr300×4	──
AH3 Series
Type	Dimension				Equipped bearing model number
	Dimension				Equipped bearing model number
	d	d1	B3	G	Self-aligning ball bearing		Spherical roller bearing
	d	d1	B3	G	Self-aligning ball bearing		Spherical roller bearing
AH308	40	35	29	M45×1.5	1308k	2208k	21308k	22208k
AH309	45	40	31	M50×1.5	1309k	2209k	21309k	22209k
AH310	50	45	35	M55×2	1310k	2210k	21310k	22210k
AH311	55	50	37	M60×2	1311k	2211k	21311k	22211k
AH312	60	55	40	M65×2	1312k	2212k	21312k	22212k
AH×313	65	60	42	M70×2	1313k	2213k	21313k	22213k
AH×314	70	65	43	M75×2	1314k	2214k	21314k	22214k
AH×315	75	70	45	M80×2	1315k	2215k	21315k	22215k
AH×316	80	75	48	M90×2	1316k	2216k	21316k	22216k
AH317	85	80	52	M95×2	1317k	2217k	21317k	22217k
AH318	90	85	53	M100×2	1318k	2218k	21318k	22218k
AH319	95	90	57	M105×2	1319k	2219k	21319k	22219k
AH320	100	95	59	M110×2	1320k	2220k	21320k	22220k
AH322	110	105	63	M120×2	1322k	──	21322k	──
AH324	120	115	69	M130×2	──	──	──	──
AH326	130	125	74	M140×2	──	──	──	──
AH328	140	135	77	M150×2	──	──	──	──
AH×330	150	145	83	M160×3	──	──	──	──
AH×332	160	150	88	M170×3	──	──	──	──
AH×334	170	160	93	M180×3	──	──	──	──
AH22 Series
Type	Dimension(mm)				Equipped bearing model number	Weight(kg)
	Dimension(mm)				Equipped bearing model number
	d	d1	B3	G	Spherical roller bearing
	d	d1	B3	G	Spherical roller bearing
AH×2236	180	170	105	M190×3	22236k
AH×2238	190	180	112	M200×3	22238k
AH2240	200	190	118	Tr210×4	22240k
AH2244	220	200	130	Tr230×4	22244k
AH2248	240	220	144	Tr260×4	22248k
AH×2252	260	240	155	Tr280×4	22252k
AH×2256	280	260	155	Tr300×4	22256k
AH×2260	300	280	175	Tr320×5	22260k
AH×2264	320	300	180	Tr340×5	22264k
AH23 Series
Type	Dimension				Equipped bearing model number			Weight (kg)
	Dimension				Equipped bearing model number
	d	d1	B3	G	Self-aligning ball bearing	Self-aligning roller bearing
	d	d1	B3	G	Self-aligning ball bearing	Self-aligning roller bearing
AH2308	40	35	40	M45×1.5	2308k	22308k	──
AH2309	45	40	44	M50×1.5	2309k	22309k	2222k
AH2310	50	45	50	M55×2	2310k	22310k	2224k
AH2311	55	50	54	M60×2	2311k	22311k	2226k
AH2312	60	55	58	M65×2	2312k	22312k	2228k
AH×2313	65	60	61	M70×2	2313k	22313k	2230k
AH×2314	70	65	64	M75×2	2314k	22314k	2232k
AH×2315	75	70	68	M80×2	2315k	22315k	2234k
AH2316	80	75	71	M90×2	2316k	22316k	──
AH2317	85	80	74	M95×2	2317k	22317k	──
AH2318	90	85	79	M100×2	2318k	22318k	──
AH2319	95	90	85	M105×2	2319k	22319k	──
AH2320	100	95	90	M110×2	2320k	22320k	──
AH×2322	110	105	98	M120×2	2322k	22322k	──
AH×2324	120	115	105	M130×2	──	22324k	──
AH×2326	130	125	115	M140×2	──	22326k	──
AH×2328	140	135	125	M150×2	──	22328k	──
AH×2330	150	145	135	M160×3	──	22330k	──
AH×2332	160	150	140	M170×3	──	22332k	──
AH×2334	170	160	146	M180×3	──	22334k	──
AH×2336	180	170	154	M190×3	──	22336k	──
AH×2338	190	180	160	M200×3	──	22338k	──
AH2340	200	190	170	Tr210×4	──	22340k	──
AH2344	220	200	181	Tr230×4	──	22344k	23244k
AH2348	240	220	189	Tr260×4	──	22348k	23248k
AH2352	260	240	205	Tr280×4	──	22352k	23252k
AH2356	280	260	212	Tr300×4	──	22356k	23256k
AH30 Series
Type	Dimension(mm)				Equipoed bearing model number	Weight(kg)
Type	d	d1	B3	G	Self-aligning ball bearing
AH3024	120	115	60	M130×2	23024k	0.75
AH3026	130	125	67	M140×2	23026k	0.93
AH3028	140	135	66	M150×2	23028k	1.1
AH3030	150	145	72	M160×3	23030k	1.15
AH3032	160	150	77	M170×3	23032k	2.1
AH3034	170	160	85	M180×3	23034k	2.5
AH×3036	180	170	92	M190×3	23036k	2.9
AH×3038	190	180	96	M200×3	23038k	3.4
AH×3040	200	190	102	Tr210×4	23040k	3.8
AH×3044	220	200	111	Tr230×4	23044k	7.4
AH3048	240	220	116	Tr260×4	23048k	8.8
AH3052	260	240	120	Tr280×4	23052k	10.7
AH3056	280	260	131	Tr300×4	23056k	12
AH3060	300	280	145	Tr320×5	23060k	14.4
AH3064	320	300	149	Tr340×5	23064k	16
AH×3068	340	320	162	Tr360×5	23068k	19
AH×3072	360	340	167	Tr380×5	23072k	21
AH×3076	380	360	170	Tr400×5	23076k	23.5
AH×3080	400	380	183	Tr420×5	23080k	27.3
AH×3084	420	400	186	Tr440×5	23084k	29
AH×3088	440	420	194	Tr460×5	23088k	32
AH×3092	460	440	202	Tr480×5	23092k	35.2
AH×3096	180	460	205	Tr500×5	23096k	39.3
AH30/500	500	480	209	Tr530×6	230/500k	42.5
AH30/530	530	500	230	Tr560×6	230/530k
AH30/560	560	530	240	Tr600×6	230/560k
AH30/600	600	570	245	Tr630×6	230/600k
AH30/630	630	600	258	Tr670×6	230/630k
AH30/670	670	630	280	Tr710×7	230/670k
AH30/710	710	670	286	Tr750×7	230/710k
AH30/750	750	710	300	Tr800×7	230/750k
AH30/800	800	750	308	Tr850×7	230/800k
AH30/850	850	800	325	Tr900×7	230/850k
AH30/900	900	850	335	Tr950×8	230/900k
AH30/950	950	900	355	Tr1000×8	230/950k
AH30/1000	1000	950	365	Tr1060×8	230/1000k
AH30/1060	1060	1000	385	Tr1120×8	230/1060k
AH31 Series
Type	Dimension				Equipoed bearing model number			Weight
Type	d	d1	B3max	B4	Self-aligning ball bearing	Self-aligning roller bearing		(kg)
AH3120	100	95	64	M110×2	——	23120
AH3122	110	105	68	M120×2	3122k	23122k	2222k
AH3124	120	115	75	M130×2	——	23124k	2224k
AH3126	130	125	78	M140×2	——	23126k	2226k
AH3128	140	135	83	M150×2	——	23128k	2228k
AH3030	150	145	96	M160×3	——	23130k	2230k
AH3132	160	150	103	M170×3	——	23132k	2232k
AH3134	170	160	104	M180×3	——	23134k	2234k
AH3136	180	170	116	M190×3	——	23136k	——
AH3138	190	180	125	M200×3	——	23138k	——
AH3140	200	190	134	Tr220×4	——	23134k	——
AH3144	220	200	145	Tr240×4	——	23144k	——
AH3148	240	220	154	Tr260×4	——	23148k	——
AH3152	260	240	172	Tr280×4	——	23152k	——
AH3156	280	260	175	Tr300×4	——	23156k	——
AH3160	300	280	192	Tr320×5	——	23160k	——
AH3164	320	300	209	Tr340×5	——	23164k	——
AH3168	340	320	225	Tr360×5	——	23168k	——
AH3172	360	340	229	Tr380×5	——	23172k	——
AH3176	380	360	232	Tr400×4	——	23176k	——
AH3180	400	380	240	Tr420×5	——	23180k	——
AH3184	420	400	266	Tr440×5	——	23184k	——
AH3188	440	420	270	Tr460×5	——	23188k	——
AH3192	460	440	285	Tr480×5	——	23192k	——
AH3196	480	460	295	Tr500×5	——	23196k	——
AH31/500	500	480	313	Tr530×6	——	231/500k	——
AH31/530	530	500	325	Tr560×6	——	231/530k	——
AH31/560	560	530	335	Tr600×6	——	231/560k	——
AH31/600	600	570	355	Tr630×6	——	231/600k	——
AH31/630	630	600	375	Tr670×6	——	231/630k	——
AH31/670	670	630	395	Tr71×07	——	231/670k	——
AH31/710	710	670	405	Tr750×7	——	231/710k	——
AH31/750	750	710	425	Tr800×7	——	231/750k	——
AH31/800	800	750	438	Tr850×7	——	231/800k	——
AH31/850	850	800	462	Tr900×7	——	231/850k	——
AH31/900	900	850	475	Tr950×7	——	231/900k	——
AH32 Series
Type	Dimension(mm)				Equipped bearing model number	Weight (kg)
	Dimension(mm)				Equipped bearing model number
	d	d1	B3	G	Self-aligning ball bearing
	d	d1	B3	G	Self-aligning ball bearing
AH3218	90	85	63	M100×2	23218k
AH3219	95	90	67	M105×2	23219k
AH3220	100	95	73	M110×2	23220k
AH×3222	110	105	82	M120×2	23222k
AH×3224	120	115	90	M130×2	23224k
AH×3226	130	125	98	M140×2	23226k
AH×3228	140	135	104	M150×2	23228k
AH×3230	150	145	114	M160×3	23230k
AH×3232	160	150	124	M170×3	23232k
AH×3234	170	160	134	M180×3	23234k
AH×3236	180	170	140	M190×3	23236k
AH×3238	190	180	145	M200×3	23238k
AH×3240	200	190	153	Tr220×4	23240k
AH×3260	300	280	228	Tr320×5	23240k
AH×3264	320	300	246	Tr340×5	23264k
AH×3268	340	320	264	Tr360×5	23268k
AH×3272	360	340	274	Tr380×5	23272k
AH×3276	380	360	284	Tr400×5	23276k
AH×3280	400	380	302	Tr420×5	23280k
AH×3284	420	400	321	Tr440×5	23284k
AH×3288	440	420	330	Tr460×5	23288k
AH×3292	460	440	349	Tr480×5	23292k
AH×3296	480	460	364	Tr500×5	23296k
AH32/500	500	480	393	Tr530×6	232/500k
AH32/530	530	500	412	Tr560×6	232/530k
AH32/560	560	530	422	Tr600×6	232/560k
AH32/600	600	560	445	Tr630×6	232/600k
AH32/630	630	600	475	Tr670×6	232/630k
AH32/670	670	630	500	Tr710×7	232/670k
AH32/710	710	670	515	Tr750×7	232/710k
AH32/750	750	710	540	Tr800×7	232/750k
AH32/800	800	750	550	Tr850×7	232/800k
AH32/850	850	800	585	Tr900×7	232/850k
AH32/900	900	850	585	Tr950×8	232/900k

Place of Origin:	Shandong in China
Brand Name:	KBG,FAQ
FOB Price:	0.1-1000 USD Qingdao
Other Price Terms:	FOB,CIF,CFR,CNF;
Payment Terms:	L/C,T/T(Bank Transfer),
Minimum Order:	Piece/Pieces 1
Supply Ability:	Piece/Pieces\|100000\|Year
Package:	Standard Export Packing;
Delivery Time:	45 days
