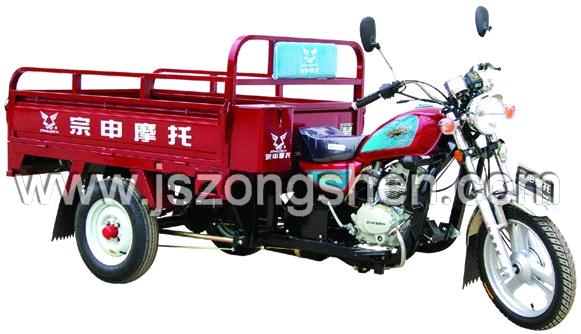

Motorcycle (ZS125ZH-3)

Detailed Product Description

Product Type	ZS125ZH-3
Product Coding	D014_1
Dimension(mm)	3170×1170×1240
Carton Dimension(mm)	16001100410
Engine Model	ZS156FMI
Engine Type	Single Cylinder,4-stroke,Air-cooled,slant engine
Cylinder Bore	56.5
Cylinder Stroke	49.5
Cylinder Displacement (ml)	124.04
Compression Proportion	9.0：1
Rated Power (kw/rpm)	7.2/（8500±500）
Maximum Torque(N.m/rpm)	8.6/（7000±500）
Idling Speed(r/min)	1400±100
Lowest Fuel Consumption(g/kW·h) ≤	367
Gasoline Type ≥	Over 90#
Engine Oil Type	SF 15W/40
Starting Method	Electric/Kick
Lighting Mode	C．D．I
Lubrication System	Press Splash
Net Engine Weight(kg)	30.5
Spark Plug	D8EA
Carburetor Circuit	PZ26
Valve Stem Clearance(mm)	0.04～0.07
Front tyre /Rear tyre (F/R)	3.25～16/4.50～12
Primary Transmission Ratio	4.055
End Transmission Ratio	4.359
Gearshift Gears	5 Drive
Max Speed(km/h) ≥	50
Fuel Tank Capacity(L) ≥	9.5
Climb Degree （°） ≥	10
Lowest Continuous Speed With Load(km/h) ≤	20
Drive Type	Chain Drive
Brake Mode	Drum
Brake Operation (F/R)	Hand Brake/Coaster Brake
Shock Absorber Mode(F/R)	cylinder/Leaf Spring
Spoke(F/R)	Web Plate/Web Plate
Battery Type	12V 9Ah
Wheel Base(mm)	2045
Wheel Gauge(mm)	970
Ground Clearance(mm) ≥	160
Minimum Turning Diameter (mm) ≥	5500
Net Weight(kg)	290
Max.Load Capacity(kg)	280
