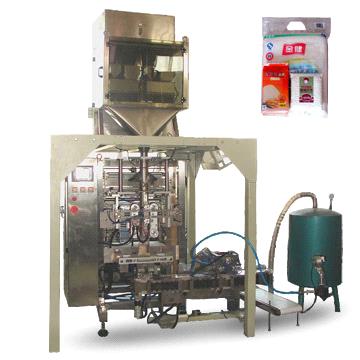

The unit of machine including : CJS2000 series weighing machine, VFS5000F vertical packaging machine ,ZB1000 vacuum machine, dust collecting system and product conveyor and so on. According to different material ( granule, powder )the bag can be designed to different size and shape(cuboids/Cube).The product seals well, so the product have a long
Value time and good looking. The unit of machine realized automatic material conveyor, filling , packaging ,reshaping ,vacuuming, sealing cutting ,product conveying , dust collecting by using the PLC and touch screen .The unit of machine is widely used in food, additive, tea ,medicine, chemical industries.
Technical parameters：
packaging speed ： 8～20bags/min
filling range： 100～2000g
bag size： 50x340x（80～260）（L*W）
filling accuracy： ±0.2～2%
air require： 0.6Mpa 0.65m3/min
reel outer diameter： Φ400mm
core inner diameter： Φ75mm
machine weight ： 2000Kg
power ： 5.5Kw 380V±10% 50Hz |
