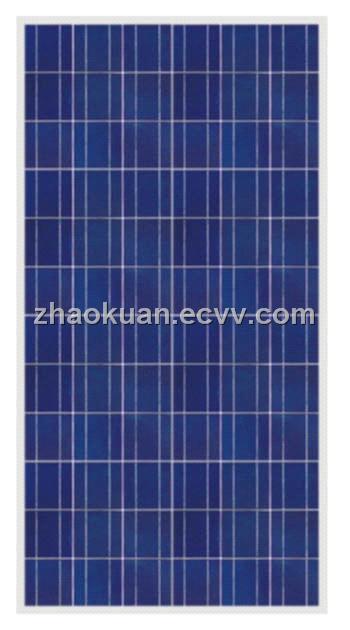

280W 36V Poly-cyrstalline Solar Panel

Detailed Product Description

ITEM NO.	JS280W-36P
Maximum Power (W)	280	270		250
Optimum Power Voltage (V mp)	35.14	35.14		35.14
Optimum Operating Current (I mp):	7.97	7.68		7.11
Open Circuit Voltage (Voc)	43.2	43.2		43.2
Short Circuit Current (ISC)	8.53	8.21		7.6
Cell Efficiency for 280W (%)	16
FF (%)	70-76%
Warranty	90% of 10 years, 80% of 25 years.
Standard Test Conditions	AM1.5 1000W/㎡ 25 +/-2°C
Bypass Diode Rating (A)	12
Cable & Connector Type	Pass the TUV Certificate
Brand Name of Solar Cells	----Cell
Size of Module (mm)	196098040
Solar Cell	156*156 Poly
Backing (Material)	TPT
Frame (Material Corners, etc.)	Aluminum-alloy
Number of Cell (PCS)	6*12
N/W(KG)	20.96
Junction Box Type	Pass the TUV Certificate
Tolerance Wattage (e.g. + /-5%)	±5%
Front Glass Thickness (mm)	3.2
Surface Maximum Load Capacity	2400Pa
Allowable Hail Load	23m/s, 7.53g
Packing	1*20'		12 Pallets / 276pcs
	1*40'STD		24 Pallets / 648pcs
Temperature Coefficients of ISC(%)℃:	+0.04
Temperature Coefficients of Voc(%)℃:	-0.38
Temperature Coefficients of Pm(%)℃:	-0.47
Temperature Coefficients of IM(%)℃:	+0.04
Temperature Coefficients of VM(%)℃:	-0.38
Temperature Range	-40°C to +85°C

Place of Origin:	Zhejiang in China
Model No:	JS-280W-36P
Brand Name:	Jinshi
Payment Terms:	L/C,T/T(Bank Transfer),
Minimum Order:	Piece/Pieces 1000
Supply Ability:	Piece/Pieces\|10000\|Month
Package:	Packing 120' 12 Pallets/ 276pcs 140'STD 24Pallets/648pcs
Delivery Time:	Negotiation
