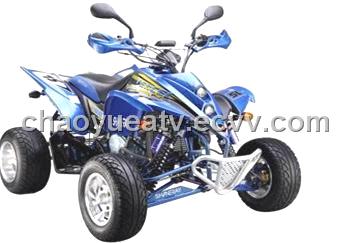

HY250CC for 2 person quad

Detailed Product Description

Engine Type:	167FMM, air-cooled, 4-stroke, single cylinder
Displacement (ml):	229cc
Bore X Stroke (mm):	67×65
Compression Ratio:	9.0:1
Max. Power (kw/r/min):	12.5/6500
Max. Torque (N.m/r/min):	15/5500
Max. Speed (Km/h):	75
Lubrication:	Pressed/Splash
Clutch Type:	manual
Ignition:	CDI
Starting System:	Electirc
Transmission System:	chain drive, rear wheel drive

CHASSIS
Front Suspension:	Independent double-wishbone with gas adjustable shocks, featuring adjustable spring preload, rebound and compression damping
Rear Suspension:	Pro-Link with single shock featuring adjustable spring preload, rebound and compression damping
Front Brake:	hydraulic disc
Rear Brake:	Hydraulic disc
Stationary Brake:	Mechanical Lock
Front Tire:	21×7-10
Rear Tire:	19×9.5-8
Battery:	12V 7Ah

DIMENSIONS
L X W X H (mm):	1690×1100×1130
Seat Height (mm):	770
Wheelbase (mm):	1140
Turning Radius (mm):	2400
Min. Ground Clearance (mm):	120
Max. Permissionable Weight (kg):	150
Rider Capacity:	2 Person
Dry. Weigth (kg):	158
Engine Oil (L):	0.8
Fuel Tank Capacity (L):	11.6
