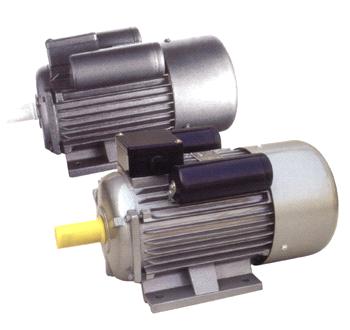

Motors 6 KV Squirrel Cage,1000KW

Detailed Product Description

-Minimal turation=1494 rot/min
-Above turation=1800 rot/min,
 -Mmin 6380Nm,
-Nominal nominal In=max.114,3 A
-Frequncy=50Hz
-         Cos φ=≥ 0,83
-         STAR connection
 -Break down torque(Mmax/Mn)=min.2,1,
 -Locked torque(Mp/mN)=max.0.8,
 -Rotor inertia moment (j)=50kg/m2,
-Charging inertia moment(j1)=100kg/m2,
-Locked current Ip/In=max.7,
-Sevice functionality=S1(IEC34-1),
-Insulation class=F,
-Type bearings=SKF or equivalent,
-Entrefer (air gap)=max.3mm,
-Efficiency η>=97,2%,
-close construction,
-B3,
-Protection=IP 55,
-IC411
-Modality cooling(1 fan inner+1 fan outside),
 -Life bearing=min100000 houres.
Coupling mod;directly with reducer by elastic join with bolt
Inertia moment of equipment wich is actionate GD2=90.000kgfm2at exit turation n=475rot/min
Termoresistance Pt 100Ω
Heating Resistance  Pn=500W at Un=220Vc.a.
Climatic protection K2

Place of Origin:Guangdong in China
Model No:YCL
Brand Name:Xima
FOB Price:16000-18000 USD Shanghai
Payment Terms:L/C,T/T(Bank Transfer),
Minimum Order:Piece/Pieces 1
Package:standard
Delivery Time:60-75
