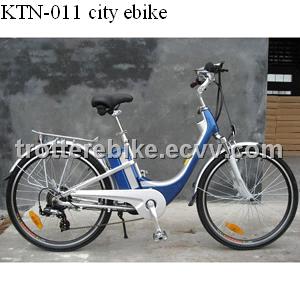

City Electric Bike (KTN-011)

Detailed Product Description

Product Model:KTN-011

Electric system		Main components
Motor	Light weight high speed	Frame	Al alloy
	brushless hub motor	Tyres	26"x1.75
	180W-250W	Rim
		Front fork	Suspension
		Front brake	Front V(Disc brake available)
Battery	36V/10Ah lithium,	Rear brake	Disc
	with electric protection circuit	Speed gears	SHIMANO 6 speed gears
		Derailleur	SHIMANO
PAS	1:1 intelligent pedal assistant system	Handle bar
	With torque sensor controller.	Stem
Controller	36V intelligent PAS, brushless	Brake lever	cut-off when braking
Charger	100V-240V, 2 amps smart charger	Chain	Rust resistant chain
	Charge time:4-6 hours	Chain wheel
Throttle	Twist intelligent speed control	Mudguard
Performance		Rear rack
Max.speed	25km/h(EU), 20mph(USA&Canada)	Saddle	Soft Comfortable
Range	40KMS with pure electric	Seat post	Suspension
	60KMS with PAS	Pedal	Plastic with reflector
Max load	100KGS	Options	basket, Lock, tool kit,
Weight	N.W:24.0KGS, G.W:28.0KGS
Dimension	1602878cm
Capacity	80pcs/20ft, 188/40HQ container
