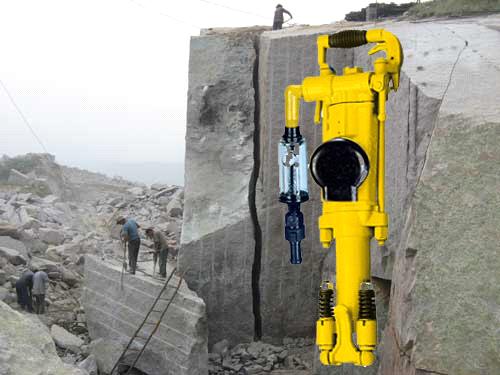

YT24 pneumatic Rock Drill

Detailed Product Description

Instruction
The rock drill of YT23 is a kind of high efficiency air leg rock drill machinery.
 it is mainly used for blasting holes and other drilling works in a quarries, railway
construction, water conservancy construction and defence project facility. When it is
matched with the Model FY200A Oil reservior and Model FT160A or FT160B Air leg,
it can perform wet drilling and blast holes from different and angles.
specification
Weight                                                              24 kg
Length                                                             628mm
Air pressure                                                     0.63MPa
Cylinder dia                                                        76mm
Piston stroke                                                       60mm
Impact frequencey                                                 ≥ 36Hz
Impact energy                                                    ≥  65J
Air consumption                                                    ≤80 L/S
Idel speed                                                      ≥300r/min
Noise                                                         ≤112dB(A)
Water pressure                                                        0.2-0.3MPa
Air pipe (inner dia )                                                  25mm
Water pipe (inner dia )                                                  13mm
Bore dia                                                         34-42mm
Bore depth                                                           5m
Shank dimensions(hex*length)                                22*108  mm*mm

Model FY200A oil lubricator
Weight                                                             1.2kg
Oil capacity                                                          0.2L
Air leg                                FT160A                    FT160B
Weight                                    17Kg                     16 kg
Length:max                              3006 mm                  2526mm
min                              1668 mm                  1428mm
Propulsion stroke                          1338 mm                 1098 mm
Axis thrust(max)                           2000 N                   2000N
Place of Origin:Fujian in China
Brand Name:DSL
Payment Terms:L/C,T/T(Bank Transfer),
Minimum Order:Set/Sets 20
Package:w/c
