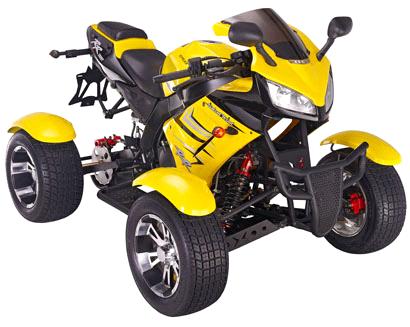

Racing Style 350cc ATV (EP350ST-8)

Detailed Product Description

Engine Type: 183FMP,/single cyliner / Four-stroke /air-cooled
Displacement (ml): 348
Bore X Stroke (mm): 83×64.5
Compression Ratio: 9.0:1
Max. Power (kw/r/min): 17.0/7500
Max. Torque (N.m/r/min): 23.5/6000
Max. Speed (Km/h): 80
Lubrication: Pressed/splash
Clutch Type: wet multiplate manual clutch
Ignition: P.E.I
Starting System: Electric
Transmission System: Chain drive

CHASSIS
Front Suspension: Independent double wish-bone with dual surge tank
Rear Suspension: Swing arm with single surge tank
Front Brake: foot brake (four-wheels linkage brake)/hand
Rear Brake: foot brake (four-wheels linkage brake)
Stationary Brake: Mechanical lock
Front Tire: AT 20×8-12
Rear Tire: AT 20×10-12
Battery: 12V 14Ah

DIMENSIONS
L X W X H (mm): 1920×1290×1125
Seat Height (mm): 850
Wheelbase (mm): 1280
Turning Radius (mm): 1600
Min. Ground Clearance (mm): 240
Max. Permissible Weight (kg): 150
Rider Capacity: 2
Dry. Weight (kg): 252
Engine Oil (L): 2.5
Fuel Tank Capacity (L): 16L

Features

Homologated- Road legal for 1 people
Four-stroke Engine
New footpegs
street bike stylistic muffler
Alloy bumper
streek bike head part
New front and rear fender
New rear rim
liquid crystal meter
