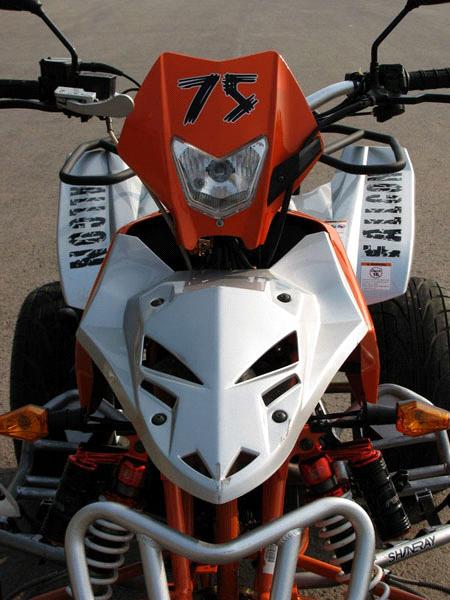

350cc eec honda atv

Detailed Product Description

Engine 　

Engine Type: 183FMP,/single cyliner / Four-stroke /air-cooled / counterbalancer shaft
Displacement (ml): 348
Bore X Stroke (mm): 83×64.5
Compression Ratio: 9.0:1
Max. Power (kw/r/min): 17.0/7500
Max. Torque (N.m/r/min): 23.5/6000
Max. Speed (Km/h): 80
Lubrication: Pressed/splash
Clutch Type: Manual Clutch
Ignition: capacitor storage
Starting System: Electric
Transmission System: Chain drive
CHASSIS 　

Front Suspension: Independent double wish-bone with dual surge tank
Rear Suspension: Swing arm with single surge tank
Front Brake: foot brake (four-wheels linkage brake)
Rear Brake: foot brake (four-wheels linkage brake)
Stationary Brake: Mechanical lock
Front Tire: 2３×7-10
Rear Tire: 2２×10-10
Battery: 12V 14Ah

DIMENSIONS 　

L X W X H (mm): 1800×1160×1410
Seat Height (mm): 840
Wheelbase (mm): 1250
Turning Radius (mm): 2400
Min.Ground Clearance (mm): 145
Max.Permissible Weight (kg): 150
Rider Capacity: 2
Dry. Weight (kg): 280
Engine Oil (L): 2.5
Fuel Tank Capacity (L): 9.3
