16 CHS Coax Surge Protetctor Device (STK10011624BNC)

Detailed Product Description

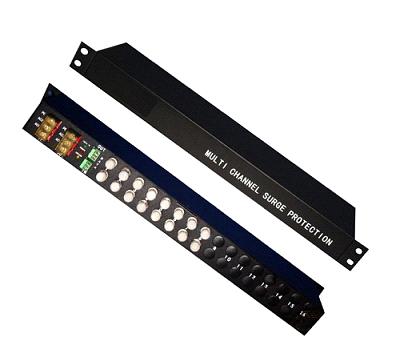

The STK10011624BNC is a 16 channel video surge protector used to protect surveillance DVRs, multiplexers, and any other type of video equipment with multiple video inputs from power surges. This rack mount unit is used in CCTV camera applications with coaxial camera cables and has 16 BNC female to BNC female input / outputs. The 1U rack mount case provides a professional installation option to you.

1. Has three functions of video . Data and power anti-lighting in one unit.

2. Almost application in all surge protection of monitor system.

3. Can protect the lighting response of coaxial cable or equipment damage caused by other high surge voltage.

4. 16 BNC Video Inputs

5. 16 BNC Video Outputs

6. 1U rack mount case

7. Coaxial Cable Video Protection

Limited working voltage Power Video Data

The most continuous voltage Un AC24V/DC12V 12V 12V

Standard current Uc 32V 15V 15V

Protection level In 5KA

Loss of insert ae < 0. 3dB

Speed ratio Vs _ 16 M bit/s 2M bit/s

Environment temperature -40℃～+80℃

Module width 480.2mm*118.5mm*44mm

Material aluminium alloy

Place of Origin:	Zhejiang in China
Model No:	STK10011624BNC
Brand Name:	STK
FOB Price:	100-150 USD Hangzhou
Other Price Terms:	100% TT in advance
Payment Terms:	T/T(Bank Transfer),Western Union,
Minimum Order:	Set/Sets 1
Supply Ability:	Set/Sets\|500\|Month
Package:	cartoons or OEM
Delivery Time:	7 days
