Basic information:
- Model: M1-T1

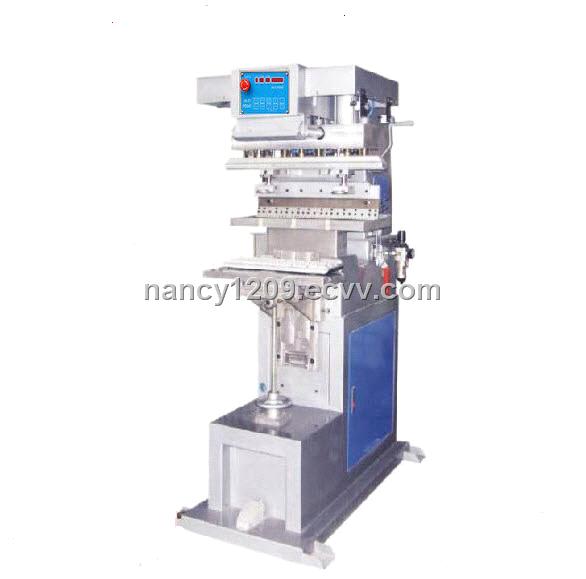

- Name: computer keyboard pad printer
- steel plate size: 400*200MM
- printing speed: 800 pcs/hr
- power: 220V50-60MHZ | 30W
- air pressure: 5~7 bar
Machine synopsis:
It is special designed for surface of computer keyboard, adopting pneumatic controlling, working steady and fastly. It is suitable for all the computer keyboard
Capability introduction:
1. PLC coordinating with soft-touc panel complile action program
2. Auto 4-digit counter built-in,and stat. Printing quantity
3. dead-stop equipment, safty printing, high efficiency
4. installing locating system, making printing position precison
5. special pad mould, it is simple to change
6. full set special pad printing heads for keyboard
7. Airframe adopts coin alloy,and metal coating surface
8. installing safty-shelf, fitting to European safty standard
9. Sucking ink and the pressure of printing pad can be adjusted independently
10. the stroke of scraper can be adjusted
11. It has function of leveling ink by sliding automatically on front /back,this can avoid printing
ink partial solidification
12. The speed of all the cylinders have an independent regulator intortum
13. Adopts original Japan SMC and Taiwan MINDMAN pneumatic component
14. Each adjustable location has scale logo
15. unique desinge of uplit machine body, it is convenient to adjust machine and chang steel
board
16. it has the function of forbiding the pad fallen when no air pressure enter into
17. The machine is running fastly,it is steady
Other parameter:
-
Action model option: fully automatic | semi-automatic | manual
-
Start-up method:panel
-
Scraper working style: by electronic switch
-
scraper pressure controller: by pressure regulating valve
-
transversa distance: 200MM
-
vertical distance: 75MM
-
transeversa stroke of keyboard: 20MM
-
second locating stroke: 40MM
-
printing head pressure: 220KG
-
Max.printing area: 150*350MM
-
locating precision <0.05MM
-
printing workstation: 1
-
fixuping clamp method: by srew
-
choosing material of clamp: aliuminum | stainless steel
- fixuping printing pad method: by hexagonal screw
Matters can be changed( the expense should be added aditionally )
You can convert ink tray system into sealed ink cup system with installing auto-cleaing printing head equipment to get better environmental performance and high printing stability.
After-sales services:
we can supply all the parts that it is easy to broken, such as curcuit plate, electronic switch and solenoid valve etc for free.
