fuel injector cleaner&diagnostic

Detailed Product Description

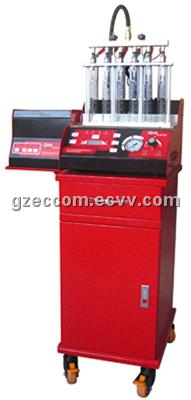

ECCOM Fuel Injector tester & Cleaner mainly apply to fuel injector testing, cleaning and quality analyze. The functions as following:

1、 To test and analyze the injecting state.

2、 To test the injector dribbling.

3、 To test the injecting angle and atomizing.

4、 To test the injecting volume.

5、 To test the injector uniformity.

6、 To test conduct the physical and chemical cleaning of the blocked or trouble injector, ultrasonic cleaning, test cleaning and on-vehicle cleaning.

7、 To test the open and close injecting pressure of the injector.

8、 Can clean the engine without dismantling (choose matched connector).

9、 Can operate the auto static test、dynamic test and selective test with the injecting dribbling、angles、atomization、uniformity of one or more(1-6) injectors, can simulate any state of the vehicle to observe the complete process of injectors.

Technical Parameter

Dimensions: 400mm × 510mm × 450mm

Weight: 25kg

Power: 85-132vac/170-264vac 47-63Hz

Fuel tank capacity: 4.5L

Test tube capacity: 120CC

Ultrasonic wave frequency: 25KHz

Ultrasonic wave power: 100W

Rotate speed: 0-9975r/min, step: 25r/min

Pulse width: 0-30ms, step: 0.1ms

Count: 0-9975r, step: 25r

Time: 0-9975S, step: 5S
