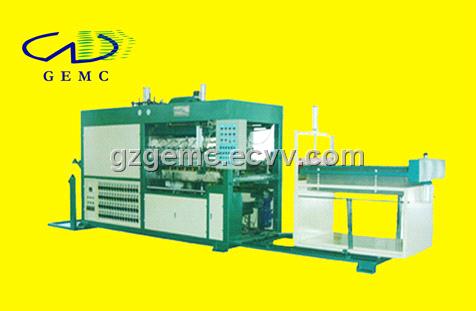

Vacuum Forming Machine (GS70-122B)

Sell Vacuum Forming Machine:

Model: GS-70/122B; GS-70/122C
Material used: PVC, PET, PE, PP, HIPS, ABS
3.Application Scope: plastic packaging for toys, hardware, cosmetics,
electronic products, foodstuff (such as plastic containers, plastic dishes,
plastic trays, plastic boxes, plastic cover, plastic lids, plastic blister
and other vessels.) and the inner lining of packing for drugs
Technical Parameter:
1)Forming length:760~1220mm/30~48(inch);
2)Forming width:450~710mm/17~28(inch)
3)Forming height:165(mm)/6.5(inch)
4)Production speed(Per Hour):220~750 sheets
5)Power of Heating Oven:30KW; 39KW
6)Power of Motor: 3.8KW; 3.7KW
7)Power of Vacuum Pump:3KW
8)Displacement of Air Compressor:>=1.6m3/min
9)Whole power consumption:37Kw;45kw
10)Voltage:380V/50HZ
11)Cooler:3P
12)Machine size: 6800*1470*2685mm; 6800*1570*2685 mm
13)Machine weight:3200kg; 3400KG

5.Payment terms: T/T, L/C
6.Price terms: EX WORKS , FOB, C&F
