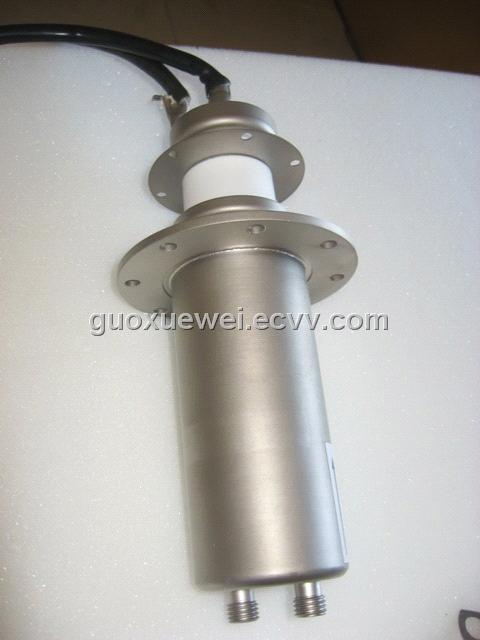

Triode Tube (ITK5-1)

Detailed Product Description

The ITK 5-1 is a RF power triode designed specifically for industrial applications. This tube uses a coaxial design and metal-ceramic technology. This triode may be operated in CW or pulse modes.

For operation in pulse mode, the parameters depend on each equipment characteristics.

Electrical characteristics

Filament thoriated tungsten

Filament voltage (+ 5 %, - 10 %) 6. 3 V

Filament current 65 A

Surge current 250 A max.

Cold resistance 12 mΩ

Capacitances:

grid-anode 16 pF

grid-cathode 21 pF

cathode-anode 0. 6 pF

Amplification factor 20 approx.

Transconductance (Va: 4 kV, Ia: 4 A)

23 mA/V approx.

Place of Origin:	Beijing in China
Model No:	ITK5-1
Payment Terms:	T/T(Bank Transfer),
Package:	The tubes exported are shipped in specially designed carton depending on their size.
Delivery Time:	1-2 weeks
