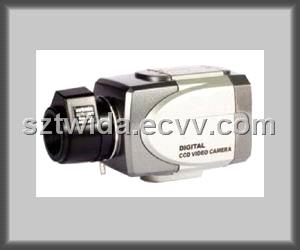

Color Standard Cameras

Detailed Product Description

Description:

MODEL	TWD-C102	TWD-C103
Image Sensor	1/4" Sony Color CCD	1/3" Sony Color CCD
Horizontal Resolution	420TV Lines
Signal System	PAL/NTSC
Picture Pixels	PAL: 500(H) X 582(V) NTSC: 510(H) X 492(V)
Sync System	Internal Synchronization
S/N Ratio	>48dB (AGC OFF)
Lens Control	Video/DC Drive
Electronic Shutter	PAL: 1/50 -1/100,000 Sec NTSC: 1/60 -1/100,000 Sec
Gamma Collection	r=0.45
White Balance	ON/OFF
BLC	ON/OFF
AGC	ON/OFF
Minimum Illumination	1.0Lux/F1.2	0.8Lux/F1.2
Video Output	1.0Vp-p, 75Ω
Power Supply	DC12V +/- 20% (Dual power DC12V/AC24V is optional)
Operation Temperature	-10℃~+50℃
Dimension	85mm x 58mm x 55mm
Net Weight	500g

Place of Origin:	Guangdong in China
Model No:	TWD-C102/TWD-C103
Brand Name:	Twida
Payment Terms:	T/T(Bank Transfer),Western Union,
Delivery Time:	3-10days
