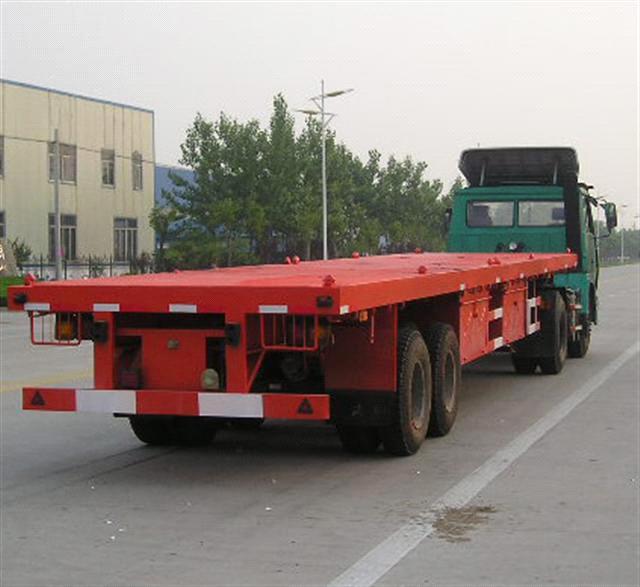

Flat Deck Semi-Trailer (HYG)

DIMENSIONS

Tare  Weight

                7860kg

Payload

              33000kg

Total Weight

              39860kg

Overall Length

              12446mm

Overall Width

               2480mm

SPECIFICATION

Main Frame

Heavy duty and extra durability designed; Opting for high tensile steel Q345B, welded by automatic Submerged arc processes.

500mm Height, Top Flange 16mm,width 140mm; Middle Flange 8mm;

Bottom Flange 20mm,width 140mm,12pieces twist locks

Floor

3mm steel floor

Axle

3 x 12Ton BPW(brand) axle

Suspension

A couple of mechanical 3-axle suspension

Leaf Spring

Six sets of reliable local brand,10-piece leaf spring

Kingpin

2 standard kingpin

Landing Gear

Two-speed, manual operation,  landing gear

Wheel Rim

12 units of 7.5 rim

Tyre

11.00R20  12 units

Spare Wheel  Carrier

2 sets of spare wheel carrier

Pneumatic

Braking System

Double line air brakes Mechanical parking brake

Wabco ABS system

Electrical

System

24V system with standard 7 pole plug

Rear electrical lighting, brake lights, indicators, fog lights and reversing light

Painting

Sand blasting before painting .One coat of primer, anti-corrosion. Two coats  of finish painting. Color advised by customer

Accessory

One tool box ,Side protection
