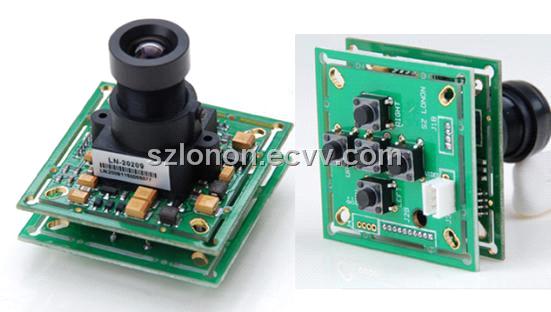

Ccd Board Cameras (CCD20209)

Detailed Product Description

OSD menu control language: English, Chinese, Russian, Japanese, and others

Image sensor: 1/3-inch Sony color CCD

TV system: PAL

Horizontal resolution: 540TVL

Scanning system: < ul>

PAL: 625 lines, 50 fields/second

NTSC: 525 lines, 60 fields/second< /ul>

Synchronization system: internal synchronization

Minimum illumination: 0. 1 lux/F 1. 2

S/N ratio: > 48db

Video output: 1. 0Vp-p, 75 ohms

Electronic shutter: 1/50 to 1/100, 000 seconds

White balance: auto

Power supply: DC 9 to 18V

Operating temperature: -10 to 50& #176; C RH 95% maximum

Dimensions: 38 x 38mm/32 x 32mm
