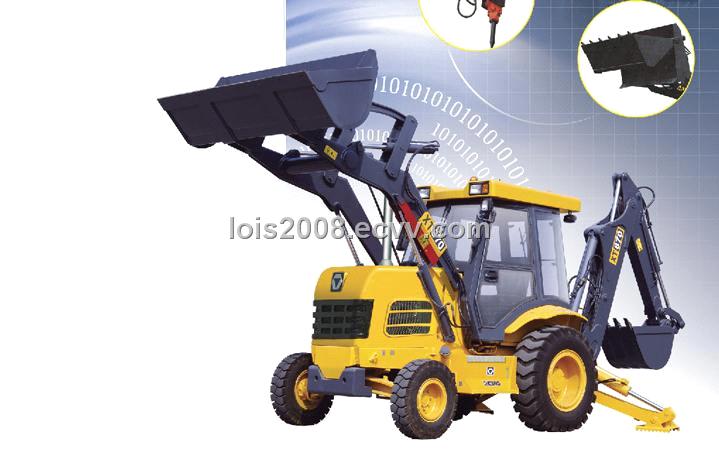

Backhoe Loader (XT870)

Detailed Product Description

Description Specification Unit

Working weight 7300 Kg

Overall dimension(L*W*H) 7173*2366*3437 mm

Max. Travel speed 40. 2/48. 6 Km/h

Wheel base 2152 mm

Turning radius 4428 mm

Tires (Fore /Reverse) 15. 5-25/8.25-15

Working oil pump Oil pump model CBGj3063 gear pump

Max. Travel speed 2200 r/min

Rated pressure 20 Mpa

Engine Rated power 74 Kw

Rated speed 2200 r/min

Model CumminsB4. 5

Modality Pressurized, water cooling, 4-cylinder, four stroke direct injection

Overall displacement 4.5 L

Fuel consumption 225 g/kw. H

Loading Installment Bucket capacity (heaped ) 0.8-1.2 M3

Dumping clearance 2825 mm

Dumping reach 727 mm

Break-out force 42 KN

Excavation Installment Digger capacity 0. 25-0. 35 M3

Max. Digging depth 4495 mm

Max. Digging radium 5471 mm

Customer could choose four-in-one bucket and hydraulic hammers as attachment according to spec requirement.
