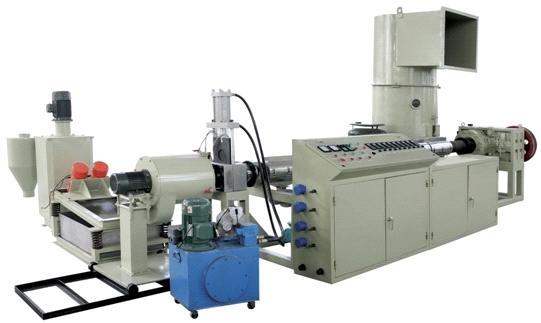

Granulating Line

Detailed Product Description

1. Belt Conveyer

Light Rubber Conveying Belt: 600mm wide

Working Length: 4.5m

Motor: 1.1kw

2. Compactor

Motor: 75kw

Rotating Knives: 9pc

Fixed Knives: 4pc

Material of Knife: Alloy Steel

There is a temperature testing point inside the machine.

3. Extruder

Motor: 90kw

Screw Diameter: 90mm

L/D: 38: 1

Screw: 38CrMoAl Special for PE. film.

Barrel Heating: 6kw x 9 zones

Vacuum Pump Force Exhausting Power: 3kw (For good quality pellets)

4. Die and Net Changing Device

Customer Ordered Die: 40 Cr

Non-stop net changing device: 2.2kw

Heating Power: 8kw

There is a pressure transducer to warn over pressured.

5. Water-Ring Pelletizer

Cutting Motor: 2.2kw

Motor Control: Siemens or LG transducer

Water Pump Power: 4kw

The parts contacted the raw material are made of stainless steel.

6. Vibration Screen

Motor: 0. 4kw x 2

The parts contacted the raw material are made of stainless steel.

7. Dewatering Machine

Motor: 4kw

Rotating Speed: 1400rpm

The parts contacted the raw material are made of stainless steel.

8. Storage Hopper

Volume: 1000L

Blower: 2.2kw

The parts contacted the raw material are made of stainless steel

Place of Origin:	China\|
Payment Terms:	L/C,T/T(Bank Transfer),
