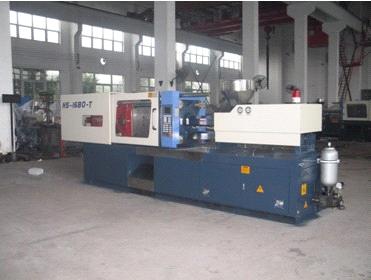

Injection Molding Machine

Detailed Product Description

Technical parameters:

Description	Unit	HS1680
Injection unit
Screw No.		A	B	C
Screw diameter	mm	42	45	50
Screw LD ratio	L/D	22	20	18
Theoretical injection capacity	cm³	343	395	488
Injection weight(PS)	g	312	359	444
Injection pressure	Mpa	177	154	125
Plasticizing capacity(PS)	g/s	16.5	18.7	22
Screw speed	rpm	0～190
Clamping unit
Clamping force	KN	1680
Mould moving distance	mm	420
Tie bar spacing	mm	460×460
Max. mould thickness	mm	500
Min. mould thickness	mm	180
Ejector stroke	mm	130
Ejector force	KN	39
Ejector bar amount	PC	5
Others
Max pump pressure	Mpa	16
Pump motor power	KW	15
Heating power	KW	9.3
External dimension(L×W×H)	m	5.03×1.4×1.84
Weight	t	4.6
Material cylinder capacity	L	25
Oil tank capacity	L	300
