Pellet Mill

Detailed Product Description

Introduction:

Materials keep dry when gonging into and coming out of the pellet mill, and there is no need to dry it (moisture of raw material≥13%). It is used with motor or diesel engine. The output volume is high, energy consumption is low and the operation is convenient.

It can produce the sphere pure organic fertilizer, organic inorganic fertilizer, and biology organic fertilizer. Pellet even& smooth, intensity high, and the fluidity is good.

Complete low-temperature drying, cooling, screen the whole process for one time. Invests few, consumption is low. Microorganism fungus survival rate>90%.

Flat die pellet mill is widely applied to pellet renewed by the organic reject of the profession such as the pasture raising cultivation industry, medium small cultivation factory, fodder factory, sugar, paper-make, medicine, smoke factory, and so on.

Technical Parameter:

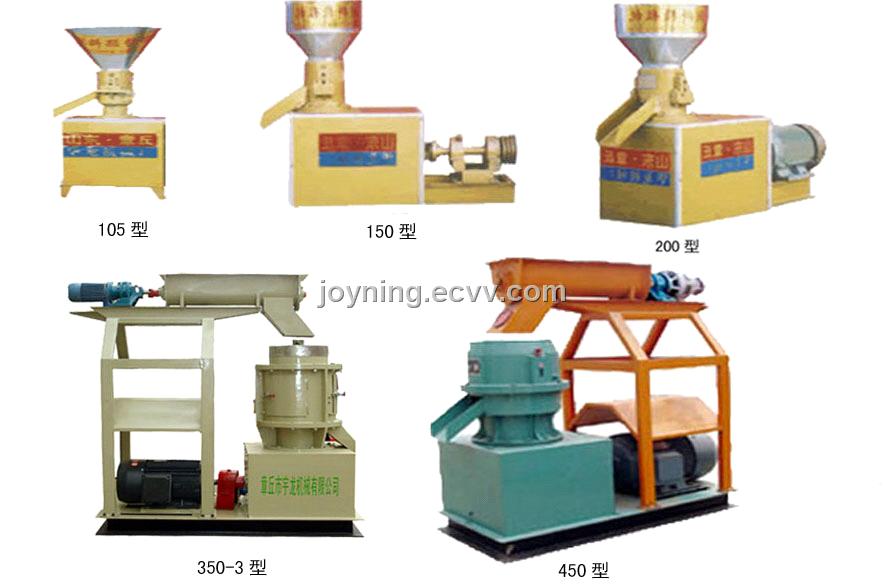

Model Parameter	550	450	350	200	150	120	105
Power(kw)	45	37	30	11(15-18hp)	7.5(12hp)	2.2-3	2.2
Rotate speed	1450 r/min
Voltage(V)	380	380	380	380	380	380or 220	380or 220
Dia of die(mm)	550	450	350	193	150	120	105
Pellet dia(mm)	1.5-12 2-12 2-12			2-12
Temperature(℃)	Below 60			70 more or less
Material moisture	13% more or less
Capacity ( /H)	2T-3T	1T-2T	0.3T-1.2T	100-500kg	50-300kg	20-100kg	50kg

Place of Origin:	Shandong in China
Model No:	SKJ2-105,SKJ-150,SKJ2-200,SKJ3-350,SKJ3-450
Brand Name:	flat-die pellet mill
Payment Terms:	T/T(Bank Transfer),
Package:	Iron sheet box
Delivery Time:	As per
