Automatic Stretch Blow Molding Machine - Sm-2000a

Detailed Product Description

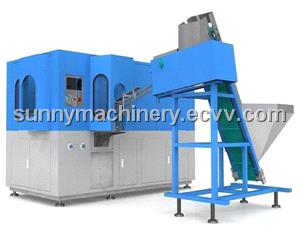

SM-2000A Automatic Stretch Blow Molding Machine

1> Output: 2400-3000B/HR Full Automatic;

2> Can Connect with filling machine;

3> Small Volume, easy to operation and convenient for transport;

4> 70% electricity saving compare with traditional machine;

5> 1set machine= 3 sets traditional machine.

6> No noice.

Capacity: 2400-3000BPH

Material: PET

Volume: 0. 1-0. 5L (2-cavity)

The poetical output: 2400-3000bph

Max. Length: 350mm

Max. Diameter: 35-145mm (2-Cavity)

Max. Mold plate dimension: 350x360mm

Max. Mold thickness: 150-300mm

Clamping force: 180KN

Mold opening stroke: 100-150mm

Power: 15KW

Voltage/Frequency: 220-380/50-60 V/HZ

Main body dimension: 1. 8x1x1. 7M

Main body weight: 0. 75T

Conveyor dimension: 2x0. 5x0. 8M

Conveyor weight: 0. 15T
