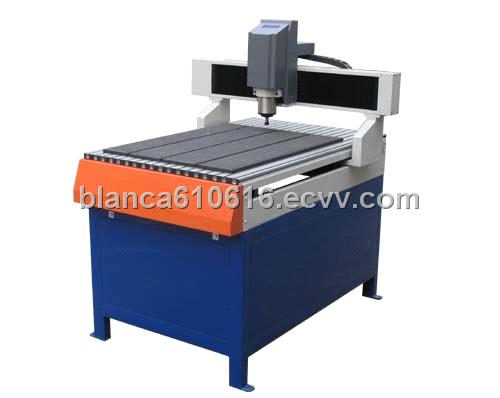

CNC engarving machine-6090

Detailed Product Description

pleae write your eamil ID in you inquiry . thank you very much，or we can not contact you .

Model:Sh-6090 industrial engraving/rotary/cutting/carving ?machine

Advantage:

◆Using cast iron platform,aluminum gantry to make sure that it can keep rigid high-precision

◆Spindle motor power efficient use adjustale Gap process,lige guide of not less than 10 years

◆Compatible with popur CAD/CAM software :type3/Artcam/Casmate/Pro/UG/Artgrave etc.

◆Have power restored, powet outages continued carving and processing functions , such as the forecast period, the real human design

Applicable industry:

◆???? apply to applied acrylic,PVC,wood,3D character,the production of mosaic and so on,have to suck up a knife ,cutting strong and efficient,can easy blow through the 20-35mm acrylic panels.

◆???? Local speed ,suitable for cutting large print,relief processing ,3D processing

Technical parameters:

Model	SH-6090
x.y.z rotary	60090060mm
Working area	740*1170mm
Max moving speed	6000mm/min
Max engraving speed	4000mm/min
Max feeding speed	100mm
Resolution ration	0.005mm
Resetting precision	0.03
Carving instruction	HPGL,G, u00, mmg,plt,eng
Systm environment	Windows 98/2000/XP
Working voltage	AC380/220
Spindle power	1.5kw/2.2kw/3.0kw/4.5kw(optional)
Working speed	0-24000rpm/min
Working way	Stepper motor

Place of Origin:	Shandong in China
Model No:	SH-6090
Brand Name:	Shenhui
Payment Terms:	L/C,T/T(Bank Transfer),
Minimum Order:	Set/Sets 1
Supply Ability:	Set/Sets\|350\|Month
Package:	packing information: specially make the woodcase to pack the machine .we infill the wooden case wi
Delivery Time:	6 days after downpayment
