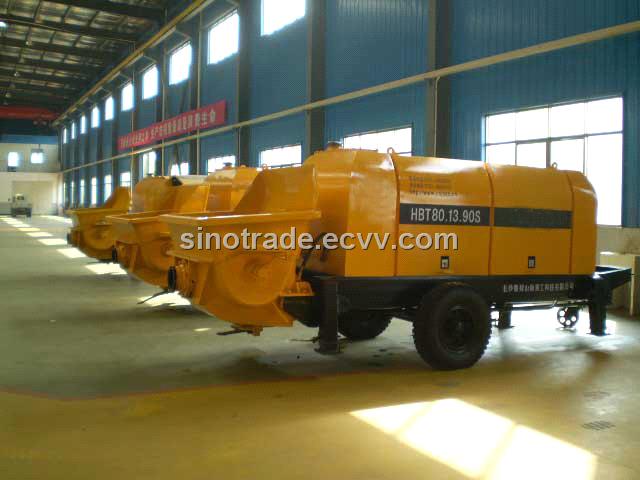

Trailer Mounted Concrete Pumps

Detailed Product Description

1. features and applications

Our HBT series concrete pump is a high-tech product incorporated with international advanced technology and our experience in design, production and maintenance service.

2. Parameter

trailer-mounted concrete pump		HBT motor series			HBTR diesel engine series
model	unit	HBT60C.13.90/S	HBT80C.16.110/S	HBT80C.18.165/S	HBTR80C.13.130/S	HBTR80C.16.161/S
Theor.concrete output(Low pressure/high pressure)	m³/h	66/39	90/53	85/55	100/60	85/56
Theor. Concrete pressure (Low pressure/high pressure)	Mpa	7/13	9/16	9/18	7/13	9/16
hydraulic circuit pressure	Mpa	32	32	32	32	32
cylinderⅹstroke	mm	φ200X1600	φ200X1800	φ200X1800	φ200X1800	φ200X1800
main oil pump discharge capacity	ml/r	190	260	190X2	190	260
power	kW	90	110	90+75	130	161
feeding height	mm	1450	1450	1450	1450	1450
hopper	m³	0.7	0.7	0.7	0.7	0.7
hydraulic fluid chamber	l	600	600	600	600	600
overall dimension	mm	6100X2100X2200	6350X2100X2200	6600X2200X2400	6350X2100X2200	6350X2100X2500
total weight	kg	6000	6500	7000	7000	7300
Theor.transport distance （vertical）/（level）	m	270/1300	270/1300	370/1800	240/1300	330/1600

3. introduction

hydraulic system

The open hydraulic system with dual pump and two loops is of high reliability, slight reversing shock,longer life oil pump and convenient maintenance.

pumping system

Designed unique, the hopper has good casing capability without dead space.

intelligent electric control system

main power system

the motor is used the domestic famous brands and diesel are weichai Deutz and Germany Deutz.

super-high pressure pump

With double motors,it has high output and pumping pressure.
