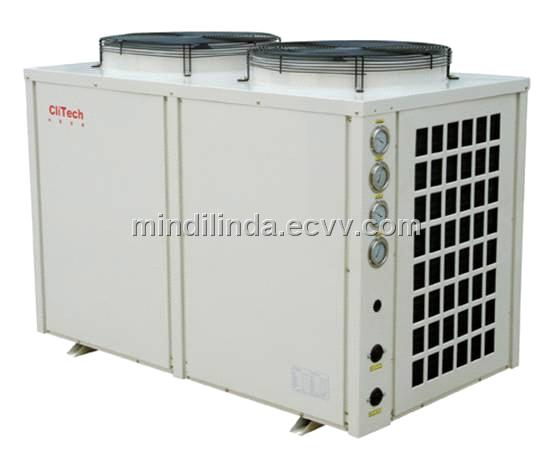

air source heat pump

Detailed Product Description

Name: air source heat pump

Model: CAR-28

Rated heating capacity(delivered):27.1kw

Rated heating capacity(delivered): 23302kca/h

Rated produce hot water capacity:0.58 T/H

Average heating input power:5.9kw

Rated heating input current:11A

COP:4.59

Rated outlet water temperature:55℃

Maximum outlet water temperature: 60℃

Compressor: copeland/panasonic/sanyo/hitachi/daikin

Compressor quantity:1

Refrigerate:R417A/R407C/R410A/R404A/R134A/R22

Maximum running current:16A

Rated voltage: 380v

Rated frequency:50HZ/60HZ

Working temperature:-15℃-43℃

Water flow:4.66m³/h:

Circulating water pipes diameter:34DN

Heat pump dimension:810 mm*810mm*1050mm

Noise:60Db(A)

Throttle unit:Electronic expansion valve/thermal expansion valve

Heat exchanger: High efficiency sleeved-internal tread heat exchanger

Remark:the test condition:dry buld temperature is 20℃, wet bulb temperature is 15℃, inlet water temperature is 15℃, outlet water temperature
