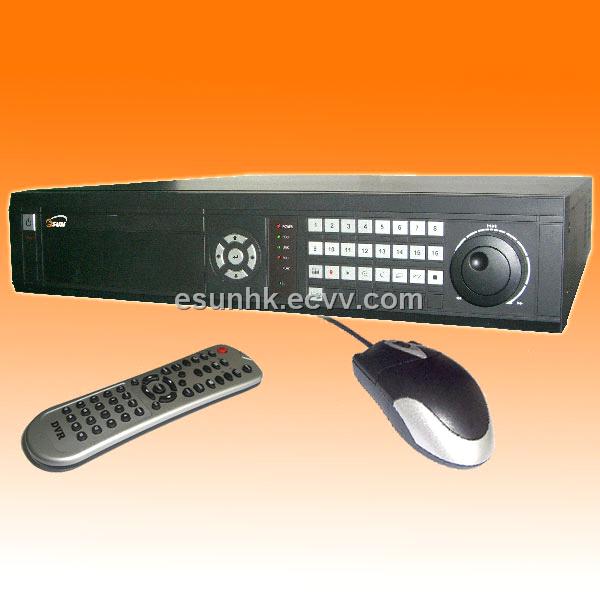

H.264 Realtime DVR

Detailed Product Description

Features:

1. Real time recording, D1, HD1 and CIF resolution

2. H.264 compression, triplex operation

3. 1ch AV or 8/16ch AV playback simultaneously

4. USB backup, CD/DVD-RW optional

5. Support USB mouse, remote control and panel control

6. Powerful network function, supprt DDNS and MNS

7. Support 4 HDD inside

Specifications:

Model No.		ES-DH7008	ES-DH7016
Video	Video CODEC	H.264
	Video Input	8ch	16ch
	Video Output	1ch composite video output, 1ch VGA output
	Recording Frame	PAL: 200fps; NTSC: 240fps (total)	PAL: 400fps; NTSC: 480fps (total)
	Live Display Resolution	720 x 576 (Monitor Display) , 1024 x 768 (VGA output)
	Television System	PAL / NTSC
	Zoom	2X
	Poll	1, 4, 8 ch	1, 4, 9, 16ch
Audio	Audio Input	8ch	16ch
	Audio Output	1 ch
	Audio CODEC	G.722
	Audio Sample Ratio	64Kbit/sec, mono audio interface
Record	Recording type	Continuous/ Motion/ Alarm/ Schedule
	Pre-recording	1-10sec
Playback	Playback Resolution	CIF, Half D1, D1
	Playback Search	By Manual / Event / Time / Date / Channel
	Playback Split	1, 8 ch	1, 16ch
	Playback Speed	X1/16, X1/8, X1/4, X1/2, X1, X2, X4, X8, X16, X32, X64, X128
Storage & Backup	Interface	4 HDD
	Capacity	4
	Archiving	HDD / USB / Network / CD-RW / DVD-RW
System	Operating System	RTOS
	Watch Dog	Yes
	F/W Upgrade	USB/CD/DVD/Network
	OSD Language	Chinese, English
Network	Interface	Ethernet10/100Base-T, RJ45
	Protocol	UDP/IP,TCP/IP, DNS&DHCP, PPOE, DDNS
	Remote Client	IE, Client software
I/O	Alarm Input	8ch	16ch
	Alarm Output	4ch
	RS232/RS422/RS485	9pin HDUSB
	USB	1 port
Control	Remote Control	Yes
	Mouse	USB Mouse
	Panel	Yes
	Network	Yes
Others	Power	AC 110V/220V, 50-60Hz
	Power Consumption	80W (without HDD)
	Environment	Humidity10%-95%, Temperature -10～60℃
	Dimension (mm)	430mm×375mm×90mm
	Weight	10KG

Place of Origin:	Guangdong in China
Model No:	ES-DH7008 / DH7016
Brand Name:	Esun
Payment Terms:	L/C,T/T(Bank Transfer),Western Union,PayPal,
Supply Ability:	Piece/Pieces\|2000\|Month
Package:	2pcs per carton
Delivery Time:	within 2 days after the receipt of payment
