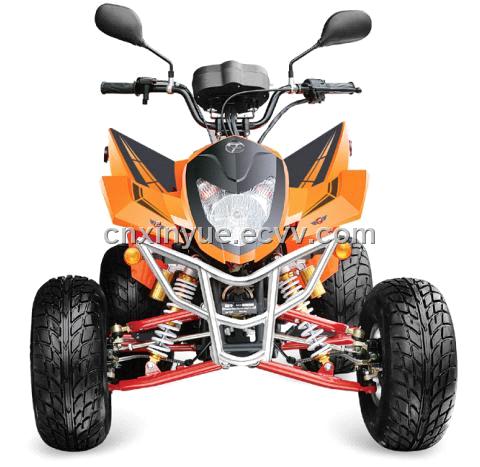

EEC ATV (005)

ENGINE TYPE:  4-stroke, single cylinder, air-cooled
Displacement: 149cc
Max power: (kw/rpm):6.0/7500
Max torque(Nm/rpm):  8.3/6000
Starting:  Electric
Ignition:  CDI
Compression Rate:  9.2:1
Transmission: CVT automatic with reverse inside
Final Drive: Chain
Front/rear Brake: Hydraulic brake/ hydraulic brake
Max Speed  (Km/h): 65
Fuel Capacity(liter) L:  7
Battery: 12v, 9Ah
Wheel Base  (mm): 1120
Front/rear Tire: 19x7-8/21x10-8
Seat height (mm): 760
Mini ground Clearance (mm): 120
Net/Gross weight (kgs): 141/168
Product size(mm): 1650x900x865
Capacity Weight (kg): 150
Container:  1435x900x865
Carton size  (mm): 63pcs/ 40’HQ

Place of Origin:	Zhejiang in China
Model No:	005
Brand Name:	Xinyue
