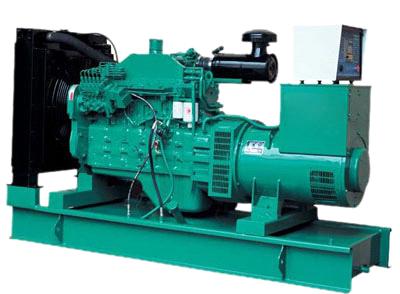

Diesel Generator (NL50C)

Prev Product

Detailed Product Description

Option: 1. Opentype; 2. Souneproof; 3. Trailer; 4. ATS.

Model: NL50C

Prime power: 40KW/50KVA

Standby Power: 50KW/63KVA

Frequency: 50HZ, 1500RPM

Voltage: 400V/230V

Engine model: 4BTA3.9-G2

Alternator: Stamford/Marathon/Engga

Packing:Wooden case

Model:NL

Standard:ISO9001

Productivity:100 sets/ month

Unit Price/Payment : T/T or L/C

HS Code:85021200

Trademark:New Line

Origin:China

Min. Order: 1 Unit

Transportation: By sea

Detail Parameters

Model	NL 50C
Prime Power (KW/KVA)	40/50
Standby Power (KW/KVA)	50/63
Fuel Consumption with full Loaded (L/H)	13
Dimension (mm)	19508301200
Weight(Kg)	1300
Engine Producer	Cummins
Engine Model	4BTA3.9-G2
Alternator Model	UCI224D
Speed (rpm)	1500
Cylinder	4
Cylinder Type	L
Governor System	Electronic Governing
Reference	Turbocharged Intercooled
Bore(mm)	102
Stroke(mm)	120
Compress Ratio	1 6 .5:1
Exhaust Capacity(L)	3.9
Starting System	24V
Lubricant capacity(L)	14.3
Coolant Capacity(L)	25
Lubricant grade	15W40-CD
Fuel Standard	0#diesel oil
Rating Voltage	400V /230V
Frequency (HZ)	50HZ
Phase	Three Phase
Power factor	0.8
Protection Standard	IP22
Voltage Regulation Ratio	±1.0%
Insulation Grade	H
Fuel consumption (L/H): 25% load	3
50% load	7
75% load	10
Full load	13.5
Soundproof dimension(mm)	265010001560
Weight(kg)	1430
