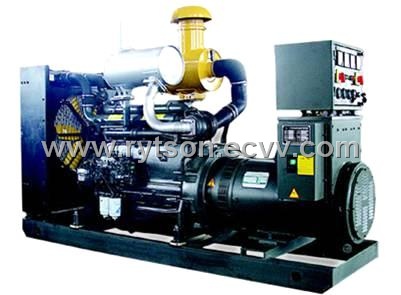

1. Deutz Generator Set
Continuous Output 1500KW / 1875KVA
Standby Output 1650KW /2062.5KVA
Rated Power Factor COSΦ=0.8(lagged)
Rated Output Voltage 400V/230V
Rated Current(Continuous/Standby) 2706A/2976.6A
Rated Speed 1500rpm
Rated Frequency 50Hz
Starting Control Method Auto Start/Handle Start
Dimension(mm) 5085*1710*2280
Genset Weight(KG) 11120kg
Steady State Voltage Adjustment(%) ≤+/-0.5
Voltage Fluctuation(%) ≤0.5
Transient State Voltage Adjustment(%) +20~-15
Voltage Stable Time(s) ≤2
Steady State Frequency Adjustment(%) ≤5
Frequency Fluctuation(%) ≤0.5
Transient State Frequency Adjustment(%) +10~-7
Frequency Stable Time(s) ≤3
Fuel Consumption(100% Load)(g/kwh) 198g/kwh
Noise(LP7m) 109dB(A)
2. Engine Specification
Brand Deutz
Model No. TBD620V16
No. of Cylinder 16
Bore*Stroke 170*195mm
Starting Method 24V DC Voltage Bearing Starting Motor
Cooling Method Close Circuit Water Cooling
Oil-supply Method Direct Injection
Speed-adjustment Method Electronic Governing
Aspiration Turbocharged Inter-cooled
Speed 1500rpm
3. Alternator :Stamford/Marathon/Engga
4.Option: 1. Opentype; 2. Souneproof; 3. Trailer; 4. ATS.
Packing: Wooden case
Standard: ISO9001
Productivity: 100 sets/ month
Unit Price/Payment: T/T or L/C
HS Code: 85021200
Trademark: New Line
Origin: China
Min. Order: 1 Unit
Transportation: By sea
| Place of Origin: | Guangdong in China |
| Model No: | NL1500D |
| Brand Name: | Deutz |
