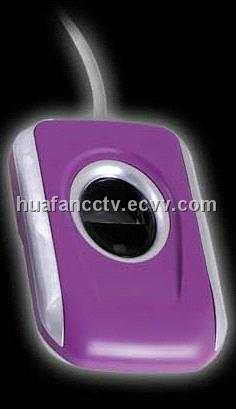

Fingerprint ReaderHF-6000
Product Introduction :
HF-6000 which is designed for using Digital Persona’ enterprise software application and developer tools. Excellent scan quality, encrypted fingerprint date, rotation invariant, works well with dry, moist or rough fingerprints, compatible with Digital Persona Pro and integrator products.
Technical Specification:
Pixel resolution: 500 dpi (average x ,y over the field)
Scan capture area: 14.2mm (nom .width at center) 18.4mm(nom .length)
Reader size(approximate):81.4*49.5*20.5mm compatible with USB2.0(Full Speed) specification
Supply Voltage:5.0v±5% supplied by USB
Supply Current-scanning:190MA(Typical)
Supply Current-idle mode:140MA (Typical)
Supply Current-suspend mode:1.5MA(Maximum)
ESD Susceptibility>15kv, mounted in case
Temperature, operating:0℃-4℃
Humidity,operating:20%-80% non-condensing
Temperature,Storage:-10℃-60℃
Humidity,Storage:20%-90% non-condensing
Scan date:8-bit grayscale (256 levels of gray)
Standards Compliance: FCC Class B, CE, ICES, BSMI, MIC, USB, WHQL.
| Place of Origin: | Chongqing in China |
| Payment Terms: | T/T(Bank Transfer),Western Union,PayPal, |
| Delivery Time: | within 7 days |
