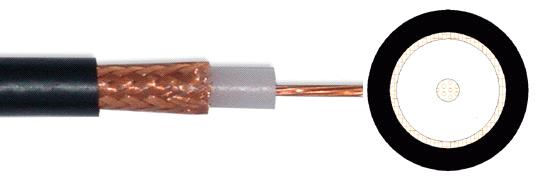

Coaxial Cable RG8 (UL Approval)

Detailed Product Description

Linoya Cable is a professional cable manufacturer, our main supply includes Ethernet Cable Cat5e, Cat6, Cat6a, Coaxial Cable, Composite Cable, Alarm Cable, Speaker Cable, Telephone Cable, HDMI Cable, Hook-Up Wire, BT3002, etc. To supply coaxial cable in the highest quality with affordable pricing, we strive to be the most innovative coaxial cable supplier of communication cable in China. Nowadays Linoya Cable has blossomed into an experienced and modernized coaxial cable supplier. With our dedicated focus on producing cables, Linoya Cable is proud to partner with industry-leading manufacturers or suppliers to supply coaxial cable with the highest quality.

Coaxial Cable RG8 feature:
Rated Temperature 75o C Standard: ML-C-17G
Conductor: Stranded Bare copper
Insulation: LDPE
Braiding Shield: Solid Bare copper 85%
Jacket: PVC
Coaxial Cable RG8 Electrical Characteristic:
1.0-2300.0MHz Impedance (ohms) 75Ω +/-3Ω
Core dielectric(kv) ≥1.0
Insulation Resistance (MΩ*km) ≥5000
Jacket dielectric (kv) ≥3.0

Coaxail Cable RG8 Application
For communication and signal systems
