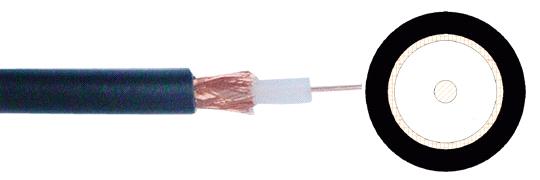

Coaxial Cable RG59 (UL Approved Cable)

Linoya Cable is a professional cable manufacturer, our main supply includes LAN Cable Cat5e, Cat6, Cat6a, Coaxial Cable, Composite Cable, Alarm Cable, Speaker Cable, Telephone Cable, HDMI Cable, Hook-Up Wire, BT3002, etc. To supply coaxial cable in the highest quality with affordable pricing, we strive to be the most innovative coaxial cable supplier of communication cable in China. Nowadays Linoya Cable has blossomed into an experienced and modernized coaxial cable supplier. With our dedicated focus on producing cables, Linoya Cable is proud to partner with industry-leading manufacturers or suppliers to supply coaxial cable with the highest quality.

Coaxial Cable RG59 feature:
Rated Temperature 75o C
Standard MIL-C-17G
Conductor: Solid Bare copper
Insulation: LDPE
Braiding Shield: Bare copper shield 75%
Braiding consistency: 75%
Jacket: Pliability PVC

Electrical Characteristic
1.0-100.0MHz Impedance (ohms) 75Ω+/-3Ω
Core dielectric(kv) ≥1.2
Insulation Resistance (Mohms*km) ≥5000
Jacket dielectric (kv) ≥3.0

Application
For communication and signal systems
