Zhejiang keli plastic machinery co.ltd
Feature:

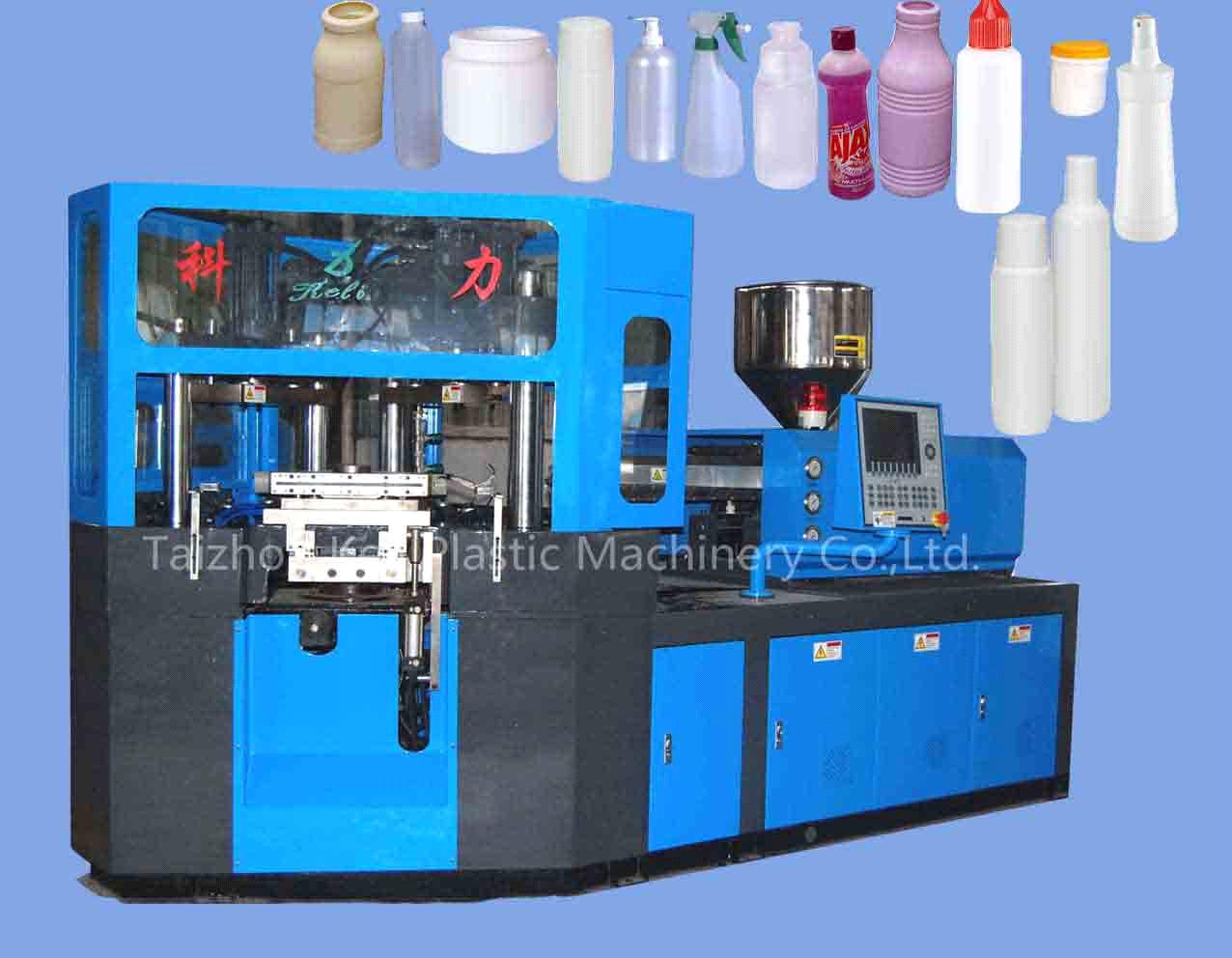

1)One step full automatic injection blow molding machine for 3~500ml bottle in food,pharmaceutical and cosmetic packing field with material of PP,PE,PS,PC,PVC,BAREX.
2)It adopts proportional hydraulic control system.
3)Three station arranged at 120 degrees, reduction of the cycle time, increase in production efficiency.
4)Advanced and accurate PID temperature control system.
5)Adopted hydraulic and pneumatic components of well-known brands from Germany and Japan.
6)PLC control system of well-known brands and the whole machine operated easy and convenient.
7) Bottle neck moulded by means of thermo-runner system.High pressure injection making accuracy of bottle mouth,bottle neck and screw thread as well as sealing ability.No joint seam,no leftover bits making reduction of raw material.
8)High utilization of raw material,high yield,high rate of return on investment.
9)High precision in bottle neck and screw,best seaming.
Parameter:
| SZCX12525 injection blow molding machine parameter |
| No |
Item |
Unit |
Data |
| SZCX125/25 |
| 1 |
Dia.of screw |
mm |
36 |
| 2 |
Max theoretical injection capacity |
cm3 |
125 |
| 3 |
Total power for charging barrel |
kw |
6.5 |
| 4 |
Plasticising capacity approx |
g/s |
25 |
| 5 |
Clamping force of injection mold |
kn |
280 |
| 6 |
Opening stoke of injection mold |
mm |
120 |
| 7 |
Clamping force of blow mold |
kn |
40 |
| 8 |
Opening stoke of blow mold |
mm |
120 |
| 9 |
Dry cycle time |
s |
3 |
| 10 |
Max swing radius |
mm |
378 |
| 11 |
Liftion height of rotary table |
mm |
60 |
| 12 |
Max plane size of mold(L*W) |
mm |
320*270 |
| 13 |
Min mold thickness |
mm |
180 |
| 14 |
Motor power |
kw |
15 |
| 15 |
Mold heating power |
kw |
2.4 |
| 16 |
Pressure of hydraulic system |
Mpa |
14 |
| 17 |
Max working pressure of compressed air |
Mpa |
1 |
| 18 |
Discharge rate of compressed air |
m3/min |
0.4 |
| 19 |
Consumption of cooling water |
m3/h |
3.5 |
| 20 |
Dimension of machine(L*W*H) |
mm |
3010*1350*2220 |
| 21 |
Machine weight |
T |
3.5 |
| 22 |
Range of formability product |
ml |
3-500 |
| 23 |
Height of formability product |
mm |
≤160 |
| 24 |
Dia.of formability product |
mm |
≤80 |
Flawless Customer Sevice:
1)Keli is not produce machinery in batches,it will analysis the bottle shape,purpose,output and cost in order to make more suitable machine.
2)Keli not to help customers to assemble the machine in their factory and training the worker but also will offer before-sale,middle-sale,after-sale service,In order to develope new technology and products to satisfy the diversified need of market.
