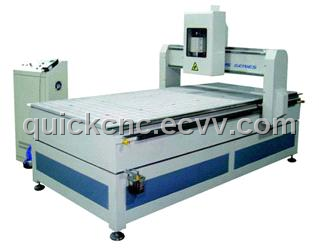

CNC Drilling Machine (K45MT/2030)

Detailed Product Description

K45MT/2030 Series

Technical Parameter:

Model	K2030
X-Y-Z axis working area	2,000 x 3,000 x 200mm
Machine size	2,800 x 3,710mm
Resolutions	0.025mm
X-Y movement	rack and pinion, gear drive/Taiwan
Z movement	ball screw drive/Germany
Guide	Linear ￠20 square/Taiwan
Max. speed	35,000mm/min
Max. cutting speed	25,000mm/min
Spindle power	4.5kw(water cooling) /Japan NSK
Spindle speed	24,000rpm
Inverter power	7.5kw
Drive motors	stepper
Working voltage	AC380V/50-60Hz, 3-phase
Command code	G code
Computer interface	USB 2.2
Collet	ER25-12.7mm,6mm,3.175mm
Software	Type3 Software/France
Controls	DSP0501 (Digital Signal Processor)
Packing dimensions	2300 x 3810 x 1960 mm,2500 kgs
Equipment available	a.Vacuum hold down b.Auto cut adjusting device c.Oil lubrication system d.Clamps and vacuum fitting
