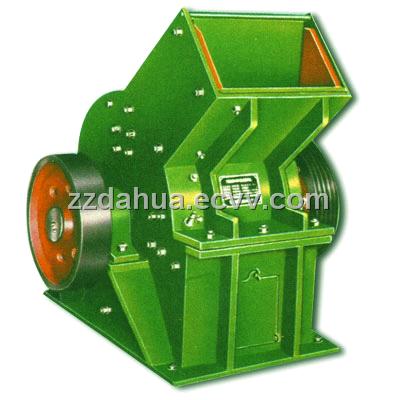

Hammer Crusher

Detailed Product Description

The hammer mill crushes by the collisions between high-speed hammer and materiasl,and the hammer crusher(hammer mill) features are in its simple structure, high reduction ration, high efficiency, etc. The PC hammer crusher(hammer mill) were developed for both dry and wet crushing of brittle, medium-hard materials for the mining, cement, coal, metallurgic, construction material, road building, and petroleum & chemical industries.

Operating principle of Hammer mill:
The motor drives the rotor rotate of the hammer crusher at a high speed through the belt, and on the rotor there are series hammers. When the materials get into the working area of hammers, they are crushed by the rotating hammers of the hammer crusher with high rotation speed, the products which are crushed to meet the required size can be discharged by the outlet and become the final products, the large size products are brought back to the crushed area by the hammers of the hammer crusher for being recrushed until they reached the required size.

Technical Data of Hammer mill:

Name	Model	Max feed size (mm)	Handling capacity (t/h)	Power of motor (kW)	Weight (t)
hammer crusher (hammer mill)	PC400×300	30	5-8	11	1.5
	PC600×400	100	10-15	18.5	3
	PC800×600	150	20-25	55	7
	PC800×1000	280	20-50	110	12
Circuit Type Hammer Mill	PCH0606	200	18-30	30	17
	PCH0808	250	30-50	45	29
	PCH1010	300	45-80	90	52
