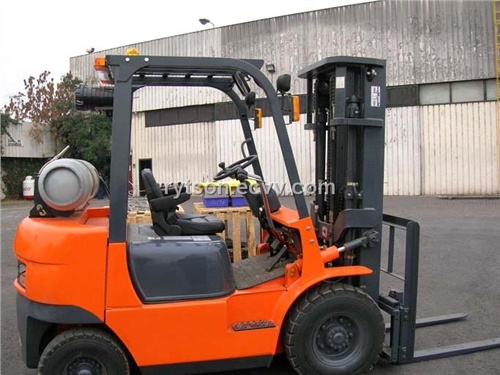

LPG Forklift

LPG Forklift

LPG Forklift

  Prev Product Contact Now Next Product

Detailed Product Description

specifications:

Model  　 CPQD20 CPQD25 CPQD30 CPQD35
Load capacity  mm 2000 2500 3000 3500
Load center mm 500 500 500 500
Tire type (front/rear)  　 7.00-12-12PR    6.00-9-10-PR 7.00-12-12PR    6.00-9-10-PR
Tilting angles  (forward-backward) 　 6°/12° 6°/12° 6°/12° 6°/12°
Free lift  mm 325 325 305 305
Max lifting speeds (without load/with load) mm 530/500 530/500 520/470 530/500
Max driving speeds (without load/with load) mm 20/17.5 20/17.5 20/18.5 20/19.5
Max lowering speeds (without load/with load ) mm 540/550 540/550 520/550 540/550
Max towing speeds (without load/with load ) N 929/1170 880/1140 1038/1146 875/1530
Max gradeability (without load/with load ) % 20 18 15 15
Minintersecting aisle  mm 2640 2710 2885 2950
Forks(L*W*H) mm 920*122*40 920*122*40 1070*125*45 1070*125*45
Minground clerance at lower point  mm 110 110 110 110
Weight distribtion with load(front/rear) kg 4775/635 5525/745 6500/870 6925/1035
Weight distribtion without load (front/rear) kg 1555/1845 1462/2185 1780/2630 1865/2595
Battery voltage/capacity  v/ah 12/100/20h 12/100/20h
Service brake  　 Hydraulic-foot pedal Hydraulic-foot pedal
Parking brake  　 Mechanical-hand lever Mechanical-hand lever
Internal combution engine modle  　 NISSAN / BAIYANG 491
Internal combustion engine rate horsepower Kw/r.p.m 37 37 37 42
Internal combustion   engine rate torque N.m/r.p.m 148 148 148 174
Internal combustion engine number of clinder  　 4 4 4 4
Internal combustion engine displacement L 2.54 2.54 2.54 2.54
Internal combustion engine fuel tank capacity  L 52 52 52 52
Transmission number of speed fwd/rvs-rype 　 1-1 Power shift T/M   2-2 Manual shift T/M
Total wegiht  kg 3400 3647 4410 4460

Place of Origin:Anhui in China
