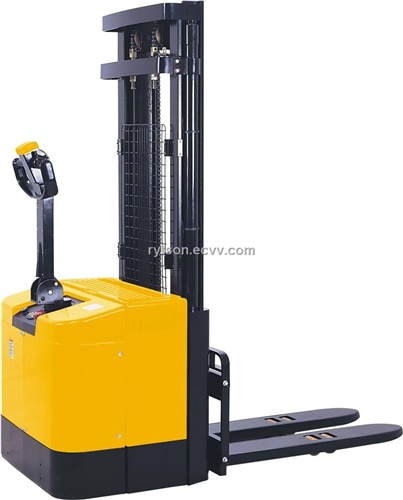

Handling Lift (CTD5)

Prev Product

Next Product

Detailed Product Description

◆ Compact design with strong steel construction

◆A robust fork lift with strong support arms and mast for minimal bending, safe lifting and long life

◆Simple and convenient lifting operation system

◆ Light and easy manual steering systems, fitted with a parking brake

◆Smooth control of lifting and lowering for high precision

◆Energy saving and regenerative, safe and efficient

◆Special designs are available according to customers' requirements.

Model		CTD5
Capacity	(kg)	500
Lifting Height(H)	(mm)	1600/2500/3000
Load Center (Q)	(mm)	500
Lowered fork height	(mm)	90
Width over the forks	(mm)	580
Fork length (L)	(mm)	1070-1220
Wheel Distance	?	1325
Overal Height (H)	(mm)	2090/1840/2090
Overal Width (W)	(mm)	722
Turning Radius (R)	(mm)	1340
Lifting Speed with full loads	Mm/time	3.4
Lifting Speed without loads		5.6
Capacity of Battery		180
Battery Voltage		12
Lift Motor Power	(mm)	1.5
Net weight	(kg)	300/380/400

Place of Origin:	Anhui in China
Model No:	CTD5
