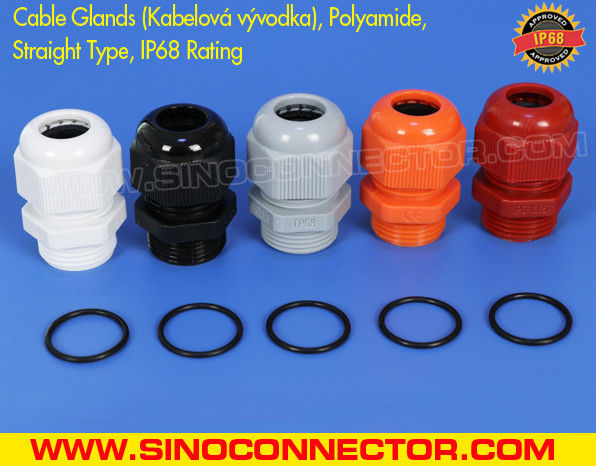

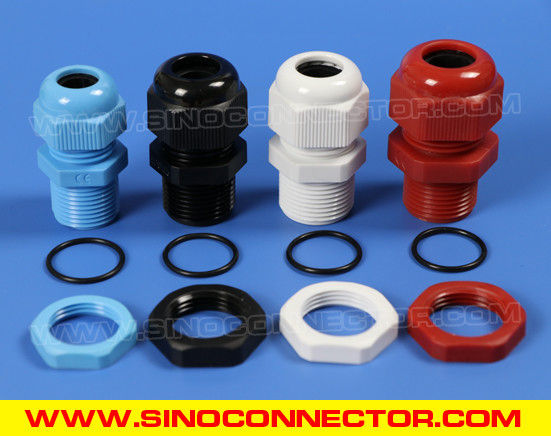

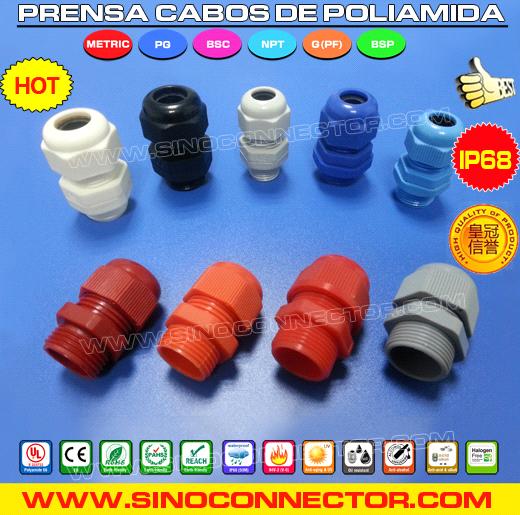

Waterproof Watertight Cable Gland / Wasserdichte Kabelverschraubungen / Kabelforskruninger i Plast

Supply Ability:	2,000,000 Piece(s) per Month
Shipping:	by sea, by air or by courier
Payment Terms:	L/C, T/T, Western Union

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Zhejiang in China
Packaging Details:	Standard export packing:100pcs/bag or 100pcs/box

Quick Details

Material: Nylon
Size: all sizes available
Protection Level: IP68
Brand Name: Sino Cable Gland Factory
Color: grey, black
Model Number: PG, Metric, NPT, G, BSC, BSP
Certifications: CE, ROHS, PAHS, REACH, IP68, IP69K

Specifications

Product name:Waterproof Watertight Cable Gland / Wasserdichte Kabelverschraubungen / Kabelforskruninger i plast.

Material:Nut, locknut and body are made from ul-certified nylon 66,94v-2. Seal and Washer from NBR or EPDM or Natural Rubber.

Standard colors:Grey RAL7035, black RAL9005, other colors are available on request.

Protection degree:IP68 (used with washer within its cable range).

Quality class:High quality (ordinary quality also available).

Operation temperature:-40 oC to 100 oC, maximum instantaneous temperature up to 120 oC.

Installation:with special design and good tensile strength, cables can be directly ed the hole of the same size thread and then fix it with the locknut.

Application:Used for fixing cables and provide the effecitve protection against dust, water, oil penetrating the electrical distribution box, electromechanical control panel and other instruments. Innovative design for the seal and clamp, wide clamping range, strong resistence against the tensile strength and thus it can protect cables effectively.

Specifications:
* PG7, PG9, PG11, PG13.5, PG16, PG21, PG29, PG36, PG42, PG48, PG63.

* M12x1.5, M14x1.5, M16x1.5, M20x1.5, M22x1.5, M25x1.5, M27x1.5, M32x1.5,
M40x1.5, M50x1.5, M63x1.5.

* NPT3/8", NPT1/2", NPT3/4", NPT1", NPT1-1/4", NPT1-1/2".

* BSC3/8", BSC1/2", BSC3/4", BSC1", BSC1-1/4", BSC1-1/2", BSC2".
