Detailed Product Description

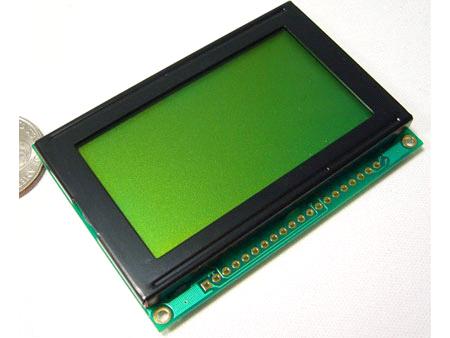

Type: Graphics LCD Module 128x64 dots
Description: Graphics LCD Module 128x64 dots and STN/Yellow-green background Display Type
Display type: STN/Blue screen
Viewing area: 62x44mm
VDD: +5.0V
Drive method: 1/128duty and 1/12bias
Operating temperature-20 to 70°C
Storage temperature:-30 to 80°C
Viewing angle: 6 o'clock
Polarizer mode: transflective and positive
Connector: T6963C
Backlight: LED (yellow-green)
Outline dimensions: 78x70x13mm
Custom design
Customer's specifications are welcome
Type: LCD Module 240x128 dots
Deception: Graphics LCD Module 240x128 dots and STN/Blue Display Type, COB module
Display type: STN/Blue screen
Viewing area: 144 x 64mm
Active area: 107.95 x 57.55mm
VDD: +5.0V
Drive method: 1/128duty and 1/12bias
Operating temperature: -20 to 70°C
Storage temperature: -30 to 80°C
Viewing angle: 6 o'clock
Polarizer mode: transflective and positive
Connector: T6963C
Backlight: LED (yellow-green)
Outline dimensions: 144 x 104mm
Custom design
Customer's specifications are welcome
| Place of Origin: | Beijing in China |
| FOB Price: | 6-8 USD Beijing |
| Payment Terms: | L/C,T/T(Bank Transfer),Western Union, |
| Minimum Order: | Piece/Pieces 50 |
| Supply Ability: | Piece/Pieces|1000000|Week |
| Package: | Lined with plastic foam and into carton |
| Delivery Time: | within 5 days after receive payment |
