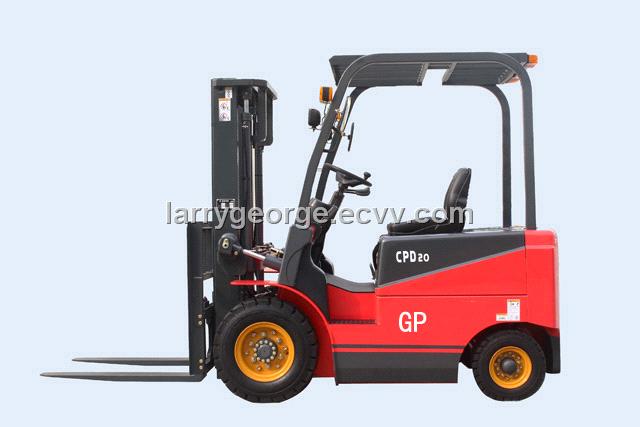

Electric Forklift (CPD10-30)

Electric Forklift (CPD10-30)

Detailed Product Description

Model		CPD10	CPD15	CPD20	CPD25	CPD30
load capacity	kg	1000	1500	2000	2500	3000
load center	mm	500
wright with load	kg	2995/745	3880/560	4940/1040	5760/860	6830/1020
weight without load	kg	1250/1490	1290/1650	1740/2240	1760/2360	2085/2764
drive speed	km/h	12/13. 5	11. 5/13	12. 5/14	12/13. 5	14. 5/12
turning radius	mm	1930			2320	230
Min. Barcket routeway	mm	2000		2400		2280
towing force	kn	5. 5		7		10
gradeability	%	15		10		10
lifting speed	mm/s	235/320	230/320	272/430	260/480	280/420
lowering speed	mm/s	《600
overhead guard height	mm	2100		2170		2125
mast height	mm	2015		2070		2040
complete size	mm	198510702100		232511702170		248112652125
free-lift height	mm	130	135	140	145	145
chair with guard height	mm	1000		1015		1020
lifting height	mm	3975		4030		4270
fork size	mm	92010030	92010035	107012040	107012042	107012545
wheel distance	mm	900/930		980/954		1040/980
hold under mast	mm	99	105
work pressure	mpa	14. 5		17. 5		18. 5
battery voltage	V	48				50
battery capacity	Ah	400	450	620	700	500
travel motor power	Kw	5		8		13
subsidiary motor power	Kw	7. 5		8. 6	10	22
gear type		CBTD-F412. 5		CBTD-F423		CBTD-F430

Place of Origin:	Shanghai in China
Model No:	CPD10-30
Brand Name:	GPforklift
Payment Terms:	T/T(Bank Transfer),
Delivery Time:	within 30days
