Shanghai Gather-Power Industry

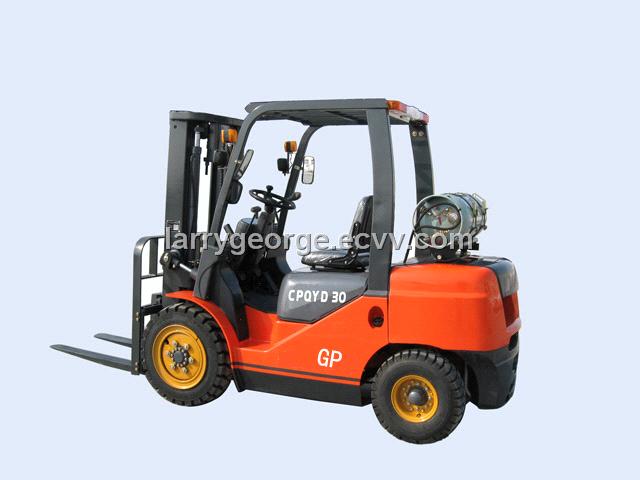

LPG Forklift

Detailed Product Description

model		CPQ(Y)20	CPQ(Y)D20	CPQ(Y)25	CPQ(Y)D25	CPQ(Y)30	CPQ(Y)D30	CPQ(Y)35	CPQ(Y)D35
load capacity	kg	2000		2500		3000		3500
load center	mm	500
wright with load	kg	4740/660		5475/805		6420/930		7400/950
weight without load	kg	1440/1960		1475/2305		1790/2560		2030/2820
drive speed	km/h	20/19.5
turning radius	mm	2170		2230		2420		2490
Min.barcket routeway	mm	1920		2000		2120		2190
towing force	kn	1170		1210		1246		1650
gradeability	%	20		18		15		16.5
lifting speed	mm/s	500/530				470/520		330/370
lowering speed	mm/s	《600
complete size	mm	2517*1160		2572*1160		2695*1230		2765*1230
over guard height	mm	2070				2085
mast height	mm	1995				2055		2155
lifting height	mm	4239				4256		4356
fork size	mm	92012240		107012545		107012545		107012550
wheel distance	mm	970/970				1000/970
work pressure	mpa	17.5						18
engine model		JAPAN MITSUBISHI4G64/NISSAN/HW491
rate power/speed	kw/r.p.m.	37/2500/42/2400
engine rate torque	kw/r.p.m.	161/1600/161/1800
engine displacement	L	2.35/2.24
gearbox change speed type		mechnical/hydraulic
front tire type		7.00-12-12PR				28*9-15-12PR
behind tire type		6.00-9-10PR				6.50-10-10PR
gear type		CBFZ-F32ALHX
full tank capacity	L	52
wheel air pressure	mpa	0.7
total weight	kg	3550		3880		4380		4750

Place of Origin:	Shanghai in China
Brand Name:	GP
Payment Terms:	T/T(Bank Transfer),
Delivery Time:	within 25days
