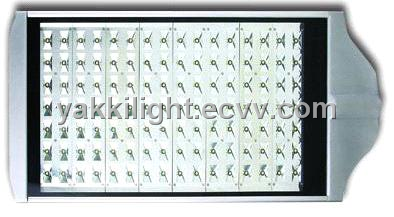

LED Street Light (YK-L009-112W)

Detailed Product Description

Performance Indicators
Input Voltage	85-265VAC
Frequency Range	50~60Hz
Power Factor(PF)	＞0.9
Total Harmonic Distortion ( Thd)	＜20%
Power Efficiency	＞90%
Working Voltag	50VDC
Led Consumption	112×1W
Power Supply Consumption	125W
Led Luminous Efficiency	≥80 lm/W
Led Initial Flux	9200 lm (Tj=25℃)
Led Maintain Flux	8800 lm(Tj=60℃,Ta=25℃)
Lamp’S Flux	8400 lm(Tj=70℃,Ta=25℃)
Lamp’S Efficiency (%)	＞90%
Illumination (E)	(Height=6m)≥37Lux (Height=8m) ≥21Lux (Height=10m) ≥13Lux (Height=12m) ≥9Lux
Effective Illuminated Area	(Height=6m): 20 x 6m (Height=8m):28 x 8m (Height=10m):35 x 10m (Height=12m):42 x 12m
Color Temperature	PureWhite: 5,000~7,000k; Warm White : 3,000~4,000k
Color Index(CRI)	Ra＞80
Light Source	High power LED (1watt)
Evenness	≥42%
Light Distribution Curve/Beam Pattern	Asymmetric (Bat Wing)/ Rectangular Beam
The Highest Light Intensity Angle	120°:The Horizontal Axis（横轴）:110°, The Vertical Axis（纵轴）:45°; 140°:The Horizontal Axis（横轴）:130, The Vertical Axis（纵轴）:45°
Beam Angle	90－120°
Junction Temperature(Tj)	75 ° C ± 1 0% ( Ta= 25 ° C )
System Resistance (Rja)	0.46° C / W
CO2 emissions index	8.25×10^-2KgCO₂/KWH(±10%)
Working Temperature	- 30 ° C ~ 40 ° C
Working Humidity	10 % ~ 90 % RH
Storage Temperature	10 ° C ~ 85 ° C
Working Life	50,000 Hrs
Lighting materials	Aluminum Alloy
Net Weight	7.5Kgs
IP Rating	IP65
Lamp Size	540×315×90 mm
Packing	1 pc /Carton
Carton Size	78.5(L)×35(W)×15(H)cm
