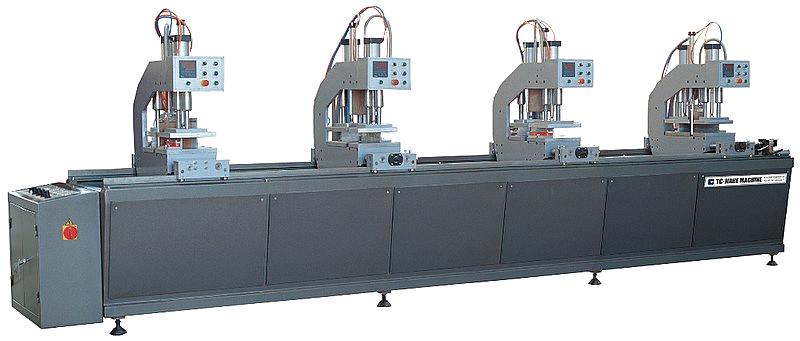

Four Head Welding Machine

Four Head Welding Machine -- SHZ4-120*4500

Four Head Welding Machine

  Prev Product Contact Now Next Product

Detailed Product Description

>>Used for welding corner or transom to achieve following type welding:┏,┏┓,┏┳┓,┳┳┳┳,╋╋╋╋,┏┓┏┓.
>>Machine heads can work separately or together.
>>Two times feeding strengthen the corner welding.
>>Any  angle welding in the right machine head
Parameter
Input Voltage:    220V 50Hz
Input Power:      4.5(kw)
Operation Air Pressure:0.4～0.6(MPa)
Air Consumption:  200(L/min)
Welding Height:   20～120(mm)
Welding Width:    120(mm)
Welding Range:    400～4500(mm)
Overall Dimension:5400×1100×1700（mm）
Machine Weight:   3000(kg)
Place of Origin:Shandong in China
Model No:-- SHZ4-120*4500
Brand Name:TC-JIAHE
Other Price Terms:We can talk
Others Payment Terms:We can talk
