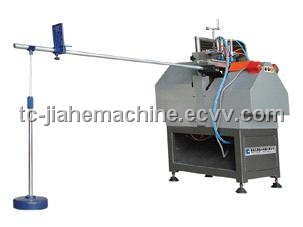

Glazing Bead Saw -- SJBW-1800

>>Used for 45° glazing bead cutting.
>>Common locating plate shortens processing cycle.
>>Adjustable locating plate lessens the error of angle cutting



Input Voltage:    3N～50Hz 380/220V
Input Power:     2.2(Kw)
Air Pressure:     0.5～0.8(MPa)
Air Consumption:  20(L/min)
Spindle Rotary Speed:2800(r/min)
Cutting Height:   29(mm)
Cutting Width:    100(mm)
Cutting Length:   320～1800(mm)
Overall Dimension:1350×500×1350（mm）
Weight:           250(kg)
