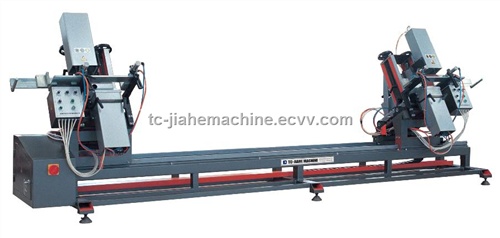

Automatic Double head Water Slot Milling Machine

Features

>>Used for milling all kinds of water slots and air pressure balance grooves.
>>Two groups of three-axis milling heads along guide, with high precise processing and high production efficiency.
>>The length of milling water slot within 60mm is adjustable and use widely.
>>Absolute milling infeed without professional maintenance and high quality.
>>Apply to high grade and mass windows production.

Input Voltage:     220V/50Hz
Input Power:       2.28(kW)
Air Pressure: 0.5～0.8(MPa)
Air Consumption:   30(L/min)
Main-shaft Revolution:2500(r/min)
Cutter Diameter:  φ4 φ5 (mm)
Slot Depth:       50(mm)
Slot Length:      30～60(mm)
Overall Dimension:4300×860×1600(mm)
Weight:           1100(kg)
