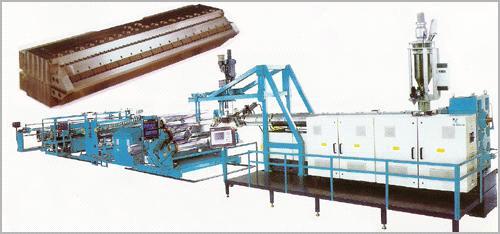

PE, PP Plastic Thick Plates (Sheets ) Extruded Prodution Line

·PE, PP plastic thick plates extruded production line is a new product made by our company absorbing foreign and advanced technique and latest technology.

·The equipment is mainly used in the products of PE or PP thicker plastic plates(sheets).

·Plates thickness: 2-40mm

·Plates width: 750-1800mm

·About all parts of the equipment is adopted known brand products. Our company had experiences and technologies made plastic plates(sheets), so it has the easy operation, and the products made by us has characteristics of low cost. Clean outside, little error, antiseptic, insulation and othere merits.

·Whats more, if you make a better change for it, it can be made LDPE or HDPE plastic foaming plates(sheets

Main Machine Provided

Single Screw Extruder

Valid Screw Length(L/D)

30: 1

Screw Rotating Speed(r/min)

60 - 90

Main Moto Power

132

Capacity

300

Width of Pressure x Diameter

1800 x ф 490

Rotational Speed of Pressure

0.15 – 3

Drawing Speed

0.15 – 3

Drawing Power

4

Cutting Power

4

Dverall Dimension of The Line

45 x 3.5 x 4.25
