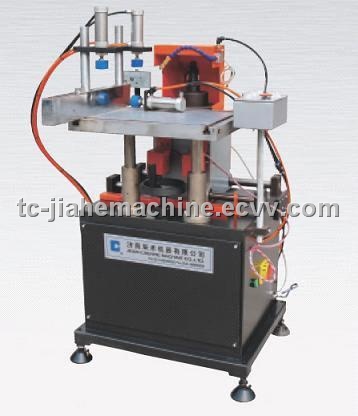

End Milling Machine -- LXDW-200

Used for processing various profiles& #379; end and step face etc.
Uniform speed feeding and high milling quality due to adjstable feeding system.  Convenient operation and high efficiency with the help of pneumatic control system.

Input voltage: 3N～50Hz 380/220V
Input power: 1. 5(kW)
Air pressure: 0. 5～0. 8(MPa)
Air consumption: 30(L/min)
Main-shaft revolution: 2800(r/min)
Locating board rotate angle: -55～+55(°)
Max proeessing dimension: 200×45×70(mm)
Cutter spindle travel range: 36(mm)
Overall dimension: 850×740×1280(mm)
Weight: 300(kg)
